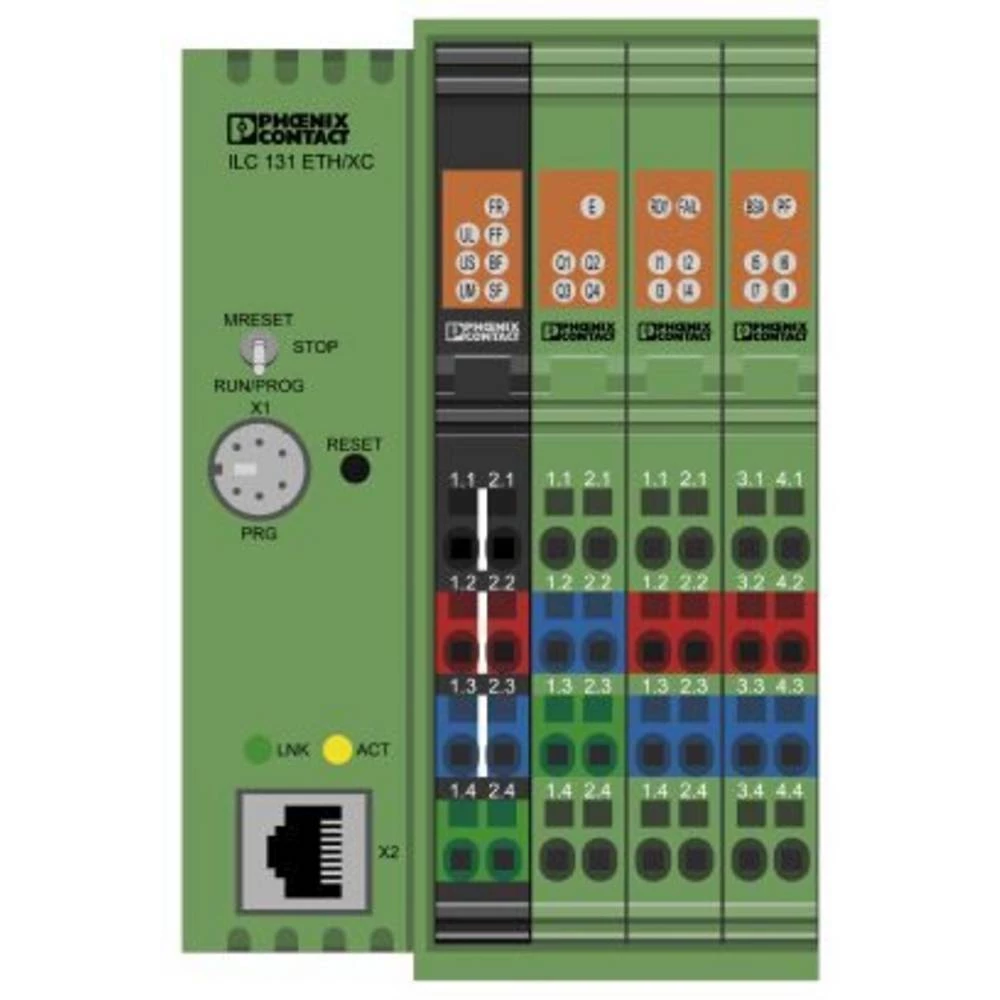

Phoenix Contact ILC 131 ETH/XC 2701034 PLC upravljački modul 24 V/DC
- Kataloški br:
- 2209784 - 62
- Oznaka:
- 2701034
- EAN:
- 4046356685092
- Kataloški br:
- 2209784 - 62
- Oznaka:
- 2701034
- EAN:
- 4046356685092
Phoenix Contact ILC 131 ETH/XC 2701034 PLC upravljački modul 24 V/DC
0.00 KM
Komada
Prodaja i slanje od:
Architektengruppe S71 d.o.o.
0.00 KM
sa PDV
Troškovi dostave
Komada
Tehničke specifikacije
Tehničke specifikacije
| Sučelja | Ethernet 10Base-T/100Base-TX INTERBUS-Lokalbus (Master) Parametrierung/Bedienung/Diagnose |
| Broj ulaza maks. | 8 |
| Broj izlaza maks. | 4 |
| min. pogonski napon | 19.2 |
| Radni napon | 24 |
| Visina | 119.8 |
| Dužina | 71.5 |
| Širina | 80 |
| Vrsta zaštite | IP20 |
| dim. | (D x Š x V) 71.5 x 80 x 119.8 mm |
| Prikaz | ne |
| Proizvođač-br. dijela | 2701034 |
| Tip | ILC 131 ETH/XC |
| Broj naredbe za upravljanje | 8 |
| Programska memorija | 192 |
| Memorija podataka | 192 |
| Sat s realnim vremenom | da |
| Postojana podatkovna memorija | 8 kB (NVRAM) |
| Maks. temperatura okoline | +60 |
| Min. temperatura okoline | -40 |
| Pogonski napon | 19.2 - 30 V/DC |
| Pogonski napon maks. | 30 |
| Width | 80 |
| Model | Modular |
| Height | 120.4 |
| Depth | 71.5 |
| With display | ne |
| Suitable for safety functions | ne |
| Number of digital inputs | 8 |
| Number of digital outputs | 4 |
| Number of analogue inputs | 0 |
| Number of analogue outputs | 0 |
| Voltage type of supply voltage | DC |
| Type of memory | NVRAM |
| Memory size | 192 |
| Processing time (1K, binary operation) | 0.0017 |
| Max. number of addressable analogue I/O-ports | 63 |
| Max. number of addressable digital I/O-ports | 63 |
| Supporting protocol for LON | ne |
| Number of HW-interfaces industrial Ethernet | 1 |
| Number of HW-interfaces RS-232 | 1 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 1 |
| With optical interface | ne |
| Additional program memory possible | da |
| Supporting protocol for TCP/IP | ne |
| Supporting protocol for ASI | ne |
| Supporting protocol for PROFIBUS | ne |
| Supporting protocol for CAN | ne |
| Supporting protocol for INTERBUS | da |
| Supporting protocol for KNX | ne |
| Supporting protocol for Modbus | ne |
| Supporting protocol for Data-Highway | ne |
| Supporting protocol for DeviceNet | ne |
| Supporting protocol for SUCONET | ne |
| Supporting protocol for other bus systems | da |
| Redundancy | ne |
| Rail mounting possible | da |
| System accessory | da |
| Supporting protocol for SERCOS | ne |
| Supporting protocol for INTERBUS-Safety | ne |
| Number of interfaces PROFINET | 0 |
| Number of HW-interfaces Wireless | 0 |
| Front built-in possible | ne |
| Rack-assembly possible | ne |
| Wall mounting/direct mounting | ne |
| Supporting protocol for AS-Interface Safety at Work | ne |
| Supporting protocol for DeviceNet Safety | ne |
| Supporting protocol for EtherNet/IP | ne |
| Supporting protocol for Foundation Fieldbus | ne |
| Supporting protocol for PROFINET CBA | ne |
| Supporting protocol for PROFINET IO | da |
| Supporting protocol for PROFIsafe | ne |
| Supporting protocol for SafetyBUS p | ne |
| SIL according to IEC 61508 | None |
| Vrsta proizvoda | PLC upravljački modul |
Opis
Opis
Unterstützung zahlreicher Protokolle wie: http, FTP, SNTP, SNMP, SMTP, SQL, MySQL uvm.. PROFINET-Device. Modbus/TCP-Client. Modbus/TCP-Server-Server. HTML 5. Kostenfreies Engineering mit PC Worx Express (IEC 61131-3).
