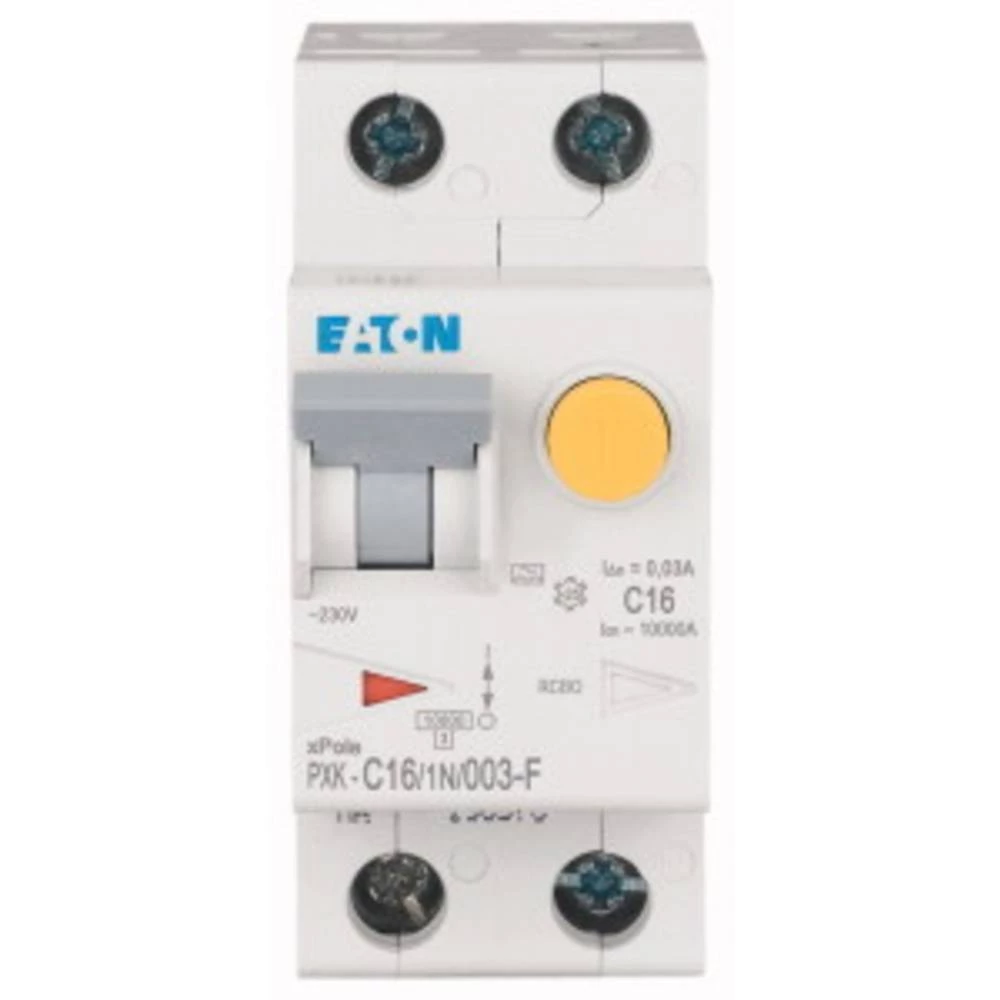

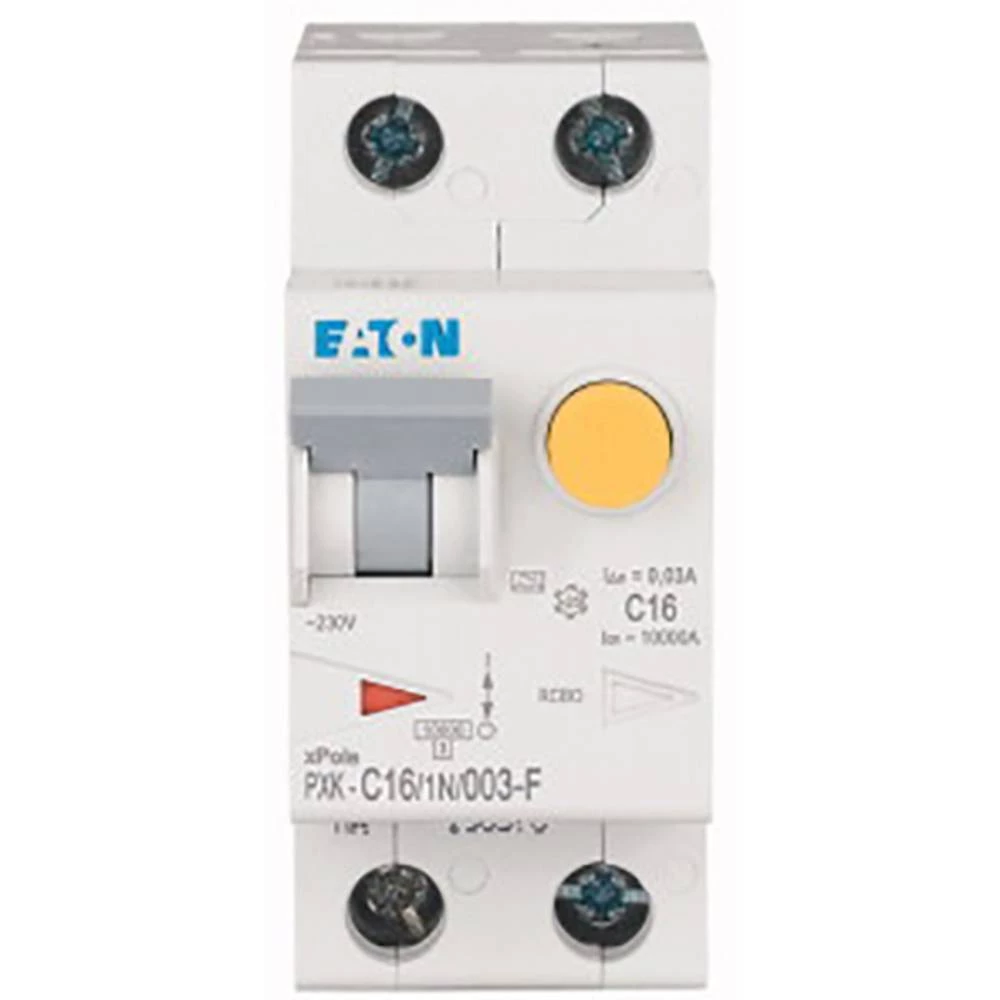

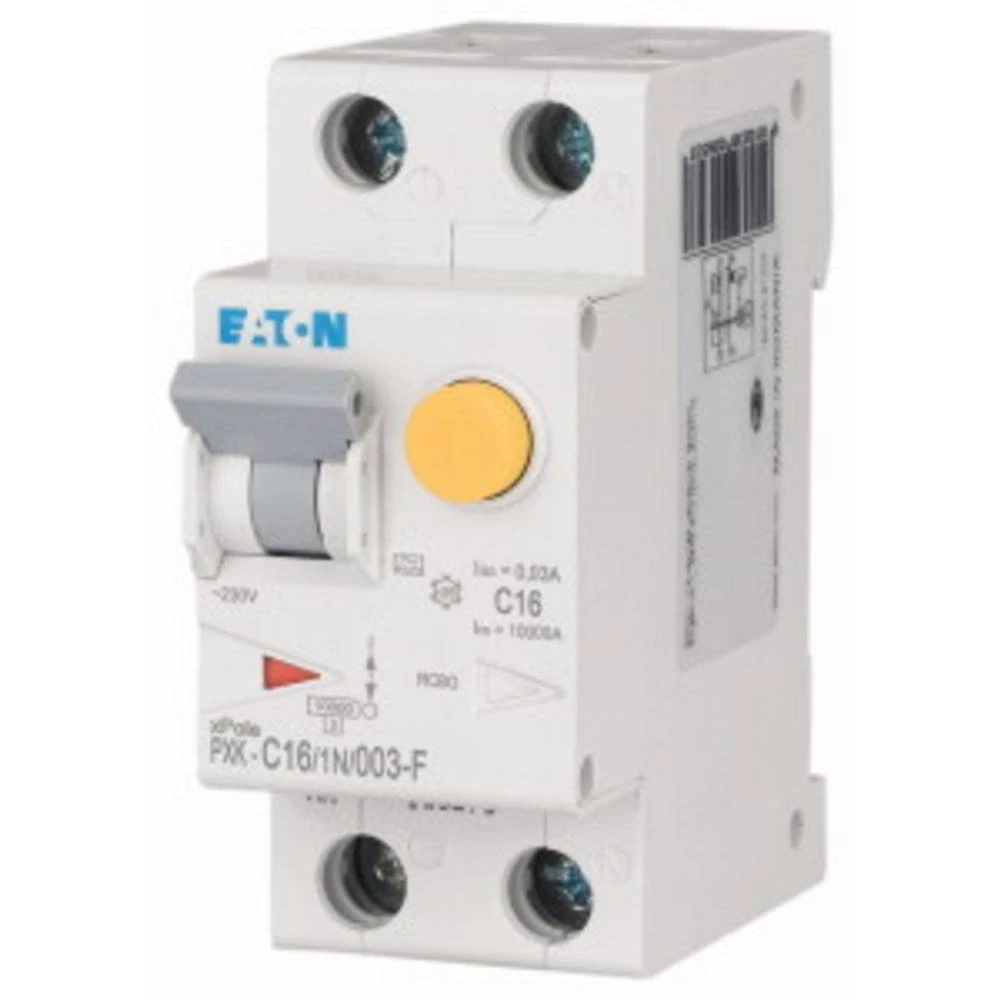

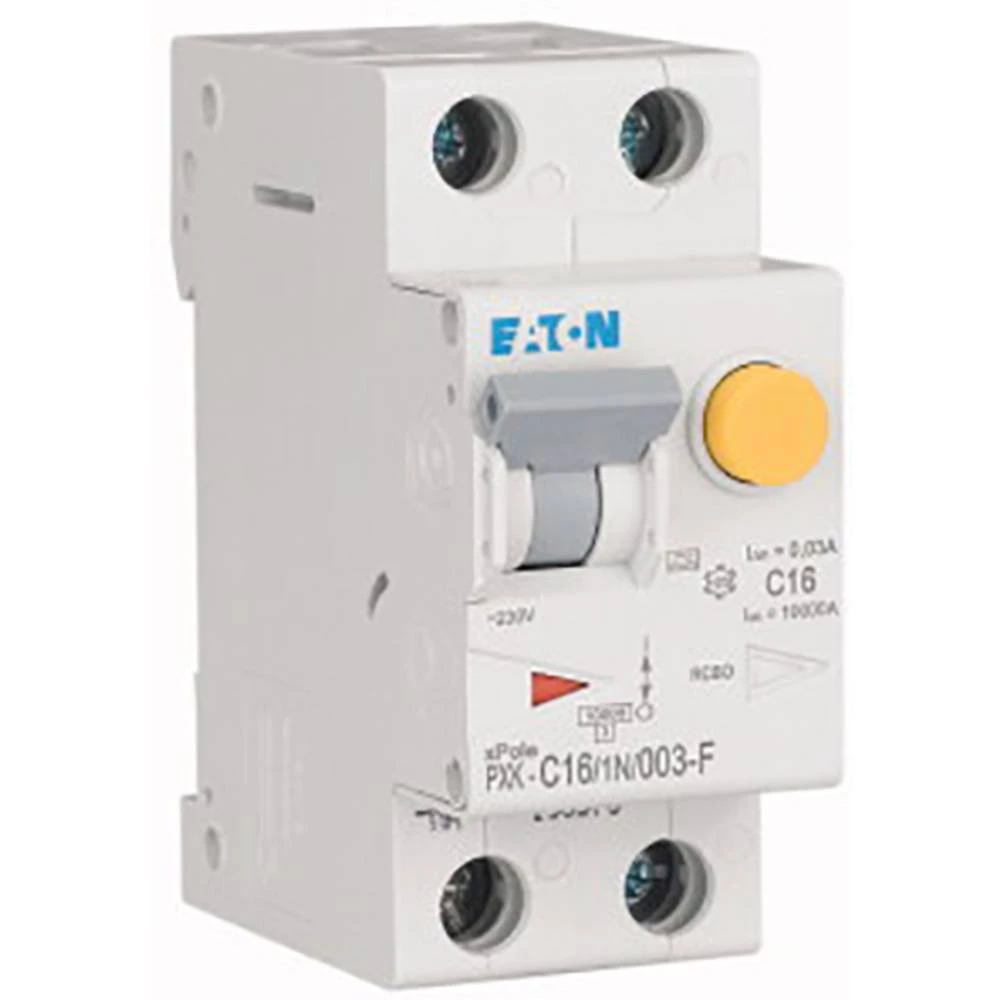

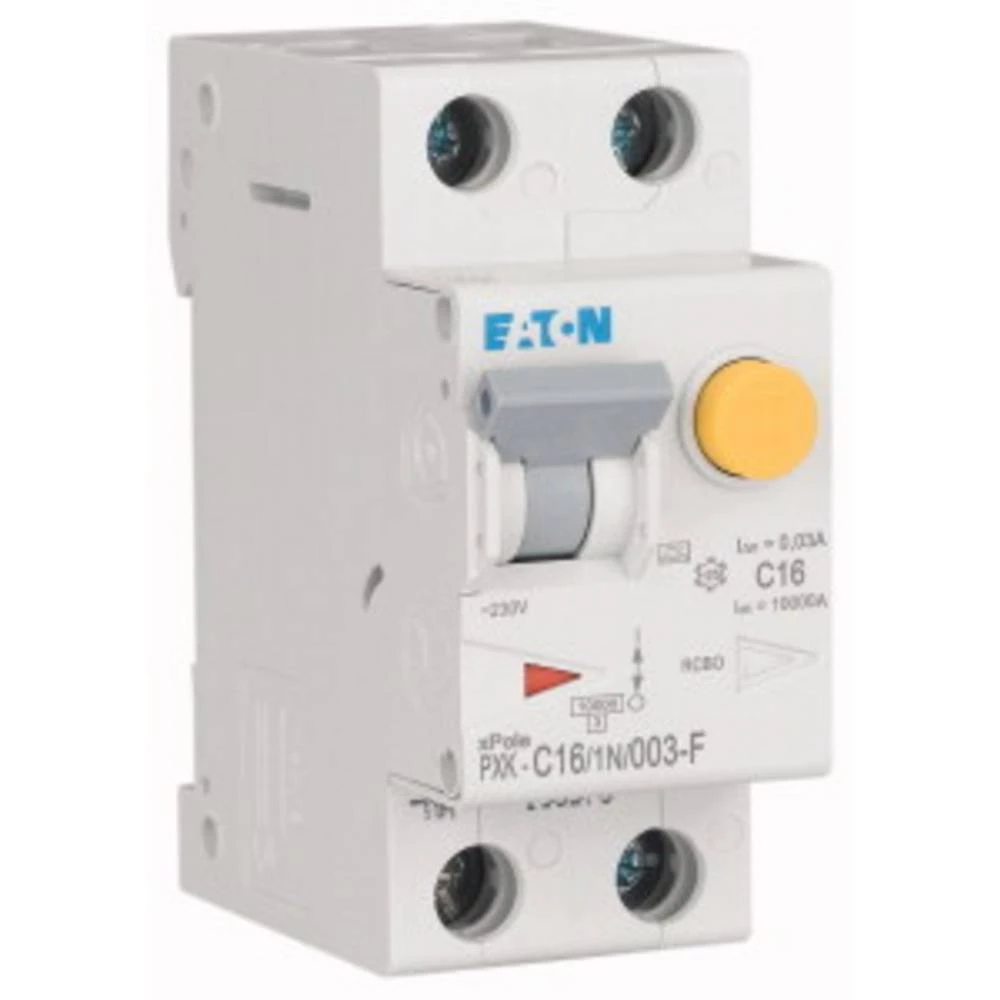

Eaton 193531 FID zaštitna sklopka/zaštitna sklopka za vodove 2-polni 16 A 0.03 A 415 V/AC

(0)

Dostupno online (Skladište: Njemačka)

Dostava: 29.06.2025 do 01.07.2025

Prodaja i slanje od: Architektengruppe S71 d.o.o.

485.00 KM

Komada

(0)

Prikaži recenzije

Tehničke specifikacije

Izvedba	1 pol + N
RoHS-konforno	Da
Sadržaj	1 St.
Nazivna struja	16 A
Nazivna struja - zaokružena	16 A
Dubina	75.5 mm
Nazivna diferencijalna struja	0.03 A
Nazivni napon	415 V/AC
Broj prekidne snage	6 kA
Broj polova	2
Karakteristike okidanja	C
Voltage type	AC
Built-in depth	75.5 mm
Rated current	16 A
Rated voltage	240 V
Release characteristic	C
Rated insulation voltage Ui	440 V
Rated fault current	0.03 A
Leakage current type	F
Surge current capacity	3 kA
Current limiting class	3
Overvoltage category	3
Pollution degree	2
Width in number of modular spacings	2
Frequency	50 Hz
Degree of protection (IP)	IP20
Number of protected poles	1
Concurrently switching neutral conductor	TRUE
Rated short-circuit breaking capacity according to IEC 60947-2	0 kA
Connectable conductor cross section solid-core	1-25 mm²
Connectable conductor cross section multi-wired	1-25 mm²
With interlocking device	FALSE
Ambient temperature during operating	-25-40 °C
Flush-mounted installation	FALSE
Number of poles (total)	2
Anti-nuisance tripping version	TRUE
Rated impulse withstand voltage Uimp	4 kV
Rated short-circuit breaking capacity Icn according to EN 61009-1	10 kA
Disconnection characteristic	Undelayed
Rated short-circuit breaking capacity according to EN 61009	10 kA
Vrsta proizvoda	FID zaštitna sklopka/zaštitna sklopka za vodove

Kompaktni prekidač / prekidač za prekidne struje za širok raspon primjena.
