LAPP 0034518/50 vod za prijenos podataka UNITRONIC® LiYCY siva 50 m

(0)

Dostava za 15 sedmica

Prodaja i slanje od: Architektengruppe S71 d.o.o.

680.00 KM

Komada

(0)

Prikaži recenzije

Tehničke specifikacije

Tip kabela	UNITRONIC® LiYCY
Broj žica	18 x
Vanjski Ø	10 mm
Boja	siva
Sadržaj	50 m
Bez halogena	ne
Proizvođač-br. dijela	0034518/50
Izolacijski material	polivinilhlorid
Raspon temperature, fiksna instalacija (min.)	-40 °C
Raspon temperature, fiksna instalacija (maks.)	80 °C

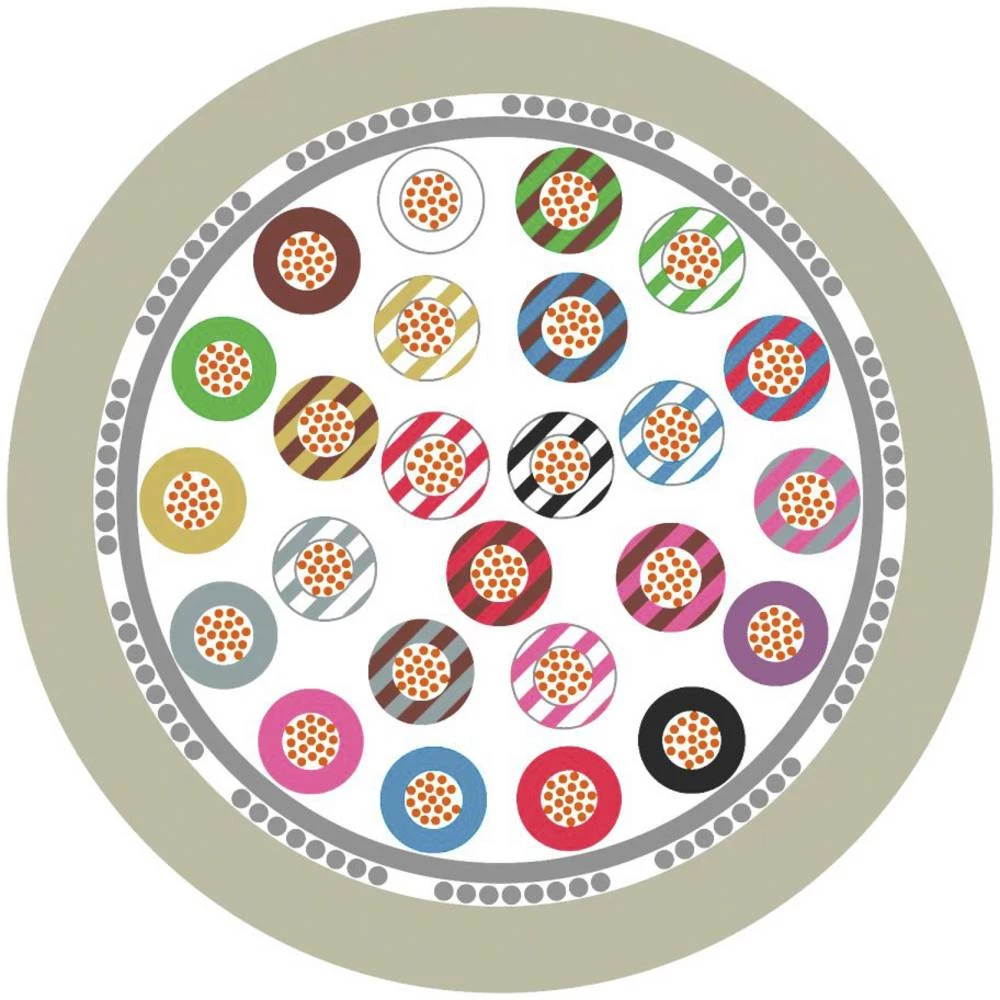

Tip	UNITRONIC® LiYCY 18x0,34
UV resistant	FALSE
Nominal cross section conductor	0.34 mm²
Material core insulation	Polyvinyl chloride (PVC)
Core identification	Colour
Flame retardant	According to IEC/EN 60332-1-2
Colour outer sheath	Grey
Conductor material	Copper
Material outer sheath	Polyvinyl chloride (PVC)
Permitted cable outer temperature after assembling without vibration	-40-80 °C
Number of cores	18
Halogen free according to EN IEC 60754-2	FALSE
Low smoke according to EN IEC 61034-2	FALSE
Outer diameter approximate	10.2 mm
Low smoke (according to EN 61034-2)	FALSE
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Min. permitted bending radius, moving application/free movement	153.0 mm
Min. permitted bending radius, stationary application/permanent installation	61.2 mm
Specification core insulation	Other
Specification material outer sheath	Other
Cable geometry	Round
Core identification according to HD 308 S2	FALSE
Vrsta proizvoda	vod za prijenos podataka
