LAPP 0036945/500 vod za vučni lanac 2 x 1.0 mm² 500 m

(0)

Dostupno online (Skladište: Njemačka)

Dostava: 26.08.2025 do 28.08.2025

Prodaja i slanje od: Architektengruppe S71 d.o.o.

20,330.00 KM

Komada

(0)

Prikaži recenzije

Tehničke specifikacije

Broj žica	2 x
Poprečni presjek (po žili)	1.0 mm²
Presjek	2 x 1.0 mm²
Vanjski Ø	11.4 mm
Sadržaj	500 m
Nazivni napon	30 V
Proizvođač-br. dijela	0036945/500

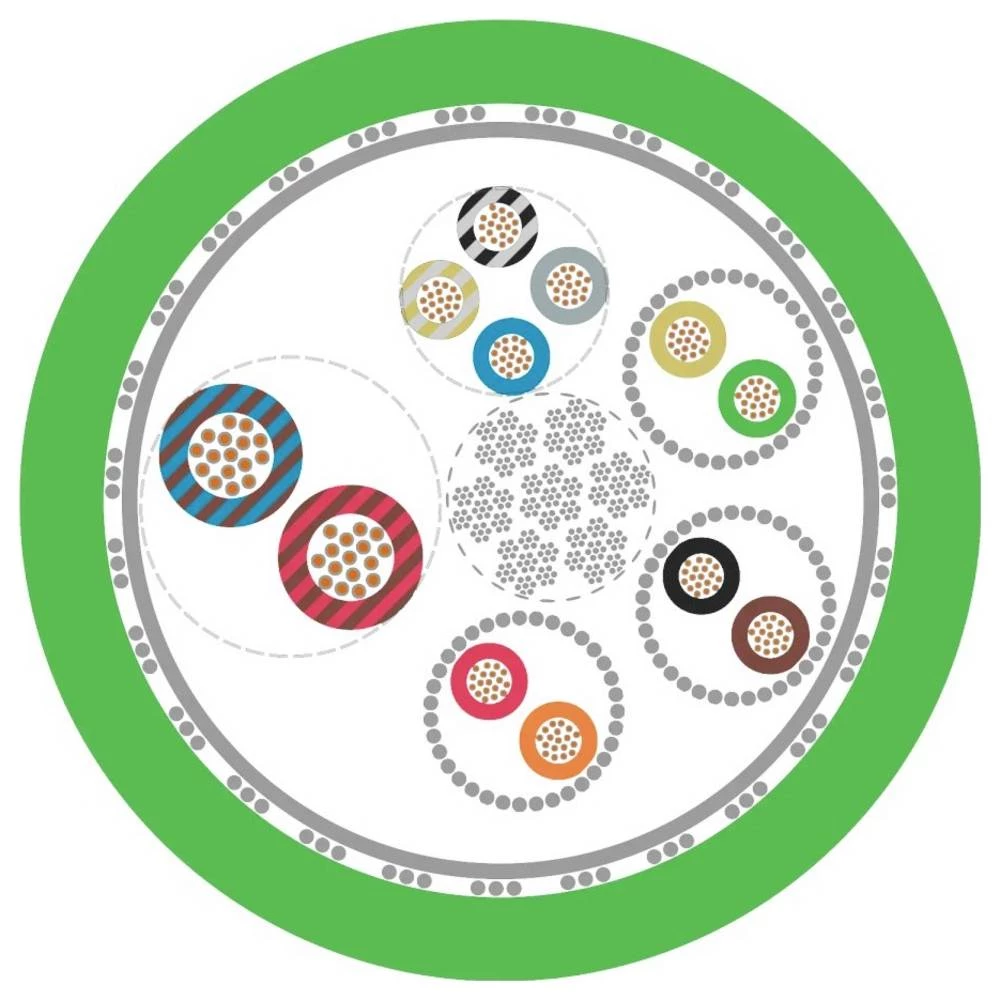

Tip	ÖLFLEX® SERVO FD 798 CP 4x(2x0,14)+2x(1)
Nominal cross section conductor	1.0 mm²
Core identification	Colour
Nominal voltage U	30 V
Colour outer sheath	Green
Conductor material	Copper
Material outer sheath	Polyurethane (PUR)
Permitted cable outer temperature after assembling without vibration	-50-90 °C
Number of cores	2
Outer diameter approximate	11.4 mm
With protective conductor	FALSE
Halogen free according to EN 60754-1/2	FALSE
Oil resistant according to EN IEC 60811-404	FALSE
Conductor surface	Tinned
AWG size	Other
Min. permitted bending radius, moving application with forced guidance	85.5 mm
Min. permitted bending radius, moving application/free movement	85.5 mm
Min. permitted bending radius, stationary application/permanent installation	45.6 mm
Specification core insulation	Polypropylene (PP)
Specification material outer sheath	Other
Cable geometry	Round
Vrsta proizvoda	vod za vučni lanac
