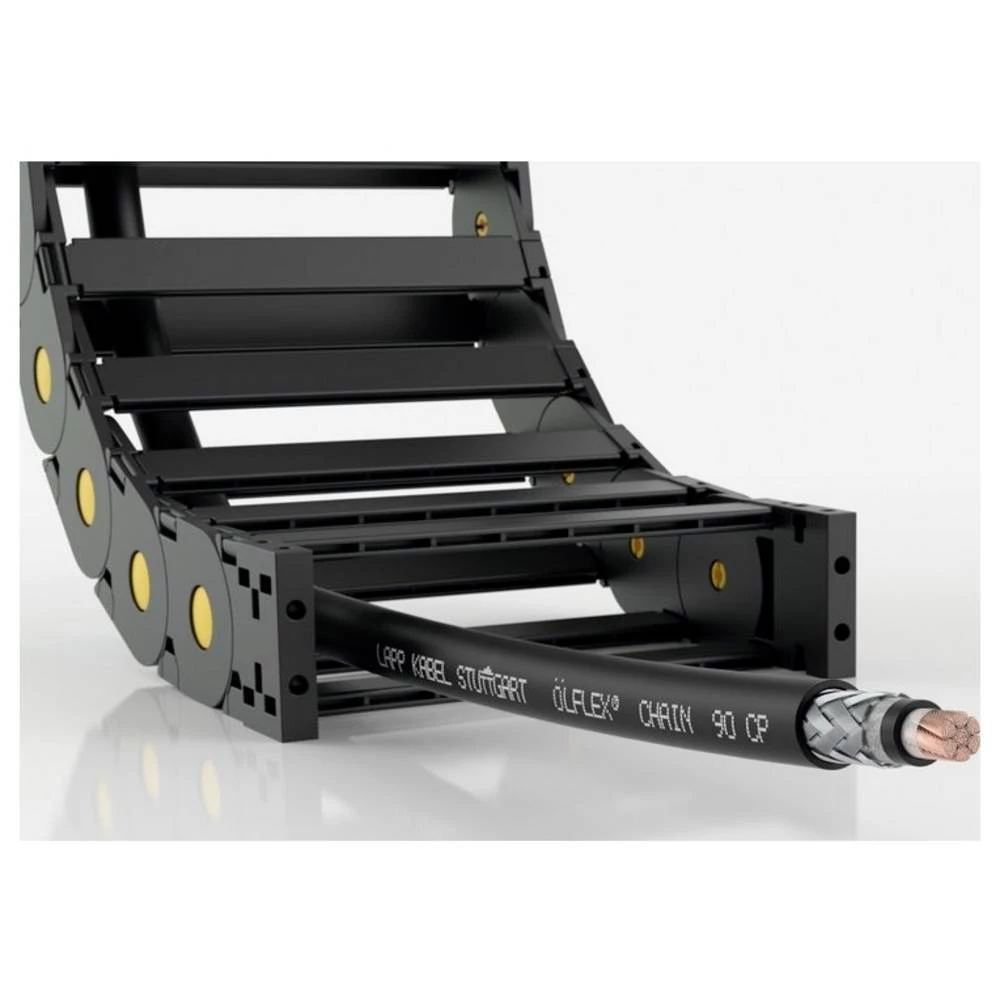

LAPP 1026565/500 vod za vučni lanac 500 m

(0)

Dostupno online (Skladište: Njemačka)

Dostava: 24.12.2025 do 30.12.2025

Prodaja i slanje od: Architektengruppe S71 d.o.o.

0.00 KM

Komada

(0)

Prikaži recenzije

Tehničke specifikacije

Vanjski Ø	23.6 mm
Sadržaj	500 m
Nazivni napon	1000 V
Nazivni napon U0	600 V
Proizvođač-br. dijela	1026565/500
Tip	ÖLFLEX® CHAIN 90 CP 1X120
Material core insulation	Other
Nominal voltage U	1 kV
Colour outer sheath	Black
Material outer sheath	Polyurethane (PUR)
Number of main cores	1
Nominal cross section main conductors	120 mm²
Nominal voltage U0	0.6 kV
Outer diameter approximate	23.6 mm
With protective conductor	FALSE
Oil resistant according to EN IEC 60811-404	FALSE
AWG size main conductors	0000
Min. permitted bending radius, moving application with forced guidance	177.0 mm
Min. permitted bending radius, moving application/free movement	177.0 mm
Min. permitted bending radius, stationary application/permanent installation	70.8 mm
Specification core insulation	Other
Specification material outer sheath	Other
Cable geometry	Round
Vrsta proizvoda	vod za vučni lanac
