LAPP 2170451/100 mrežni kabel ETHERLINE® ROBUST crna 100 m

Kataloški br:: 3350917 - 62
Oznaka:: 2170451/100
EAN:: 4044777532520

(0)

Kataloški br:: 3350917 - 62
Oznaka:: 2170451/100
EAN:: 4044777532520

Dostupno online (Skladište: Njemačka)

Dostava: 19.06.2025 do 21.06.2025

Prodaja i slanje od: Architektengruppe S71 d.o.o.

1,410.00 KM

sa PDV Troškovi dostave

Komada

(0)

Prikaži recenzije

Tehničke specifikacije

Tip kabela	ETHERLINE® ROBUST
Broj žica	4 x
Vanjski Ø	6 mm
Boja	crna
Sadržaj	100 m
Bez halogena	da/ne
Proizvođač-br. dijela	2170451/100
Raspon temperature, fiksna instalacija (min.)	-50 °C
Raspon temperature, fiksna instalacija (maks.)	80 °C
Tip	ETHERLINE® ROBUST PN Cat.5
UV resistant	TRUE
Nominal cross section conductor	0.34 mm²
Material core insulation	Polyolefin
Core identification	Colour
Colour outer sheath	Black
Conductor material	Copper
Material outer sheath	Other
Permitted cable outer temperature after assembling without vibration	-50-80 °C
Number of cores	4
Halogen free according to EN IEC 60754-2	FALSE
Low smoke according to EN IEC 61034-2	TRUE
Outer diameter approximate	6.5 mm
Low smoke (according to EN 61034-2)	TRUE
Halogen free according to EN 60754-1/2	TRUE
Conductor surface	Bare
AWG size	Other
Min. permitted bending radius, moving application/free movement	68.0 mm
Min. permitted bending radius, stationary application/permanent installation	54.4 mm
Specification core insulation	Other
Specification material outer sheath	Other
Cable geometry	Round
Core identification according to HD 308 S2	FALSE
Vrsta proizvoda	mrežni kabel

Opis

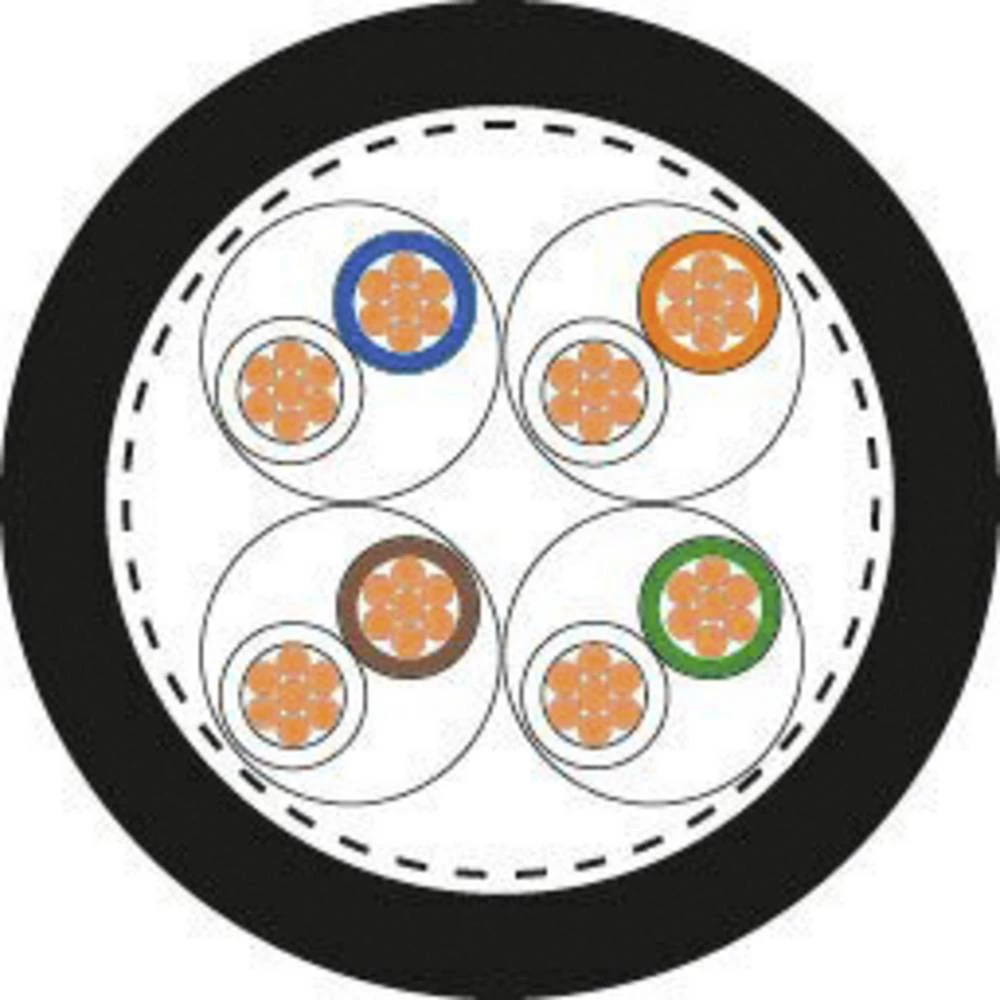

ETHERLINE® ROBUST PN Cat.5 Ethernet kabel; fleksibilan; ETHERNET/IP, EtherCAT; Cat.5e; SF/UTP; TPE; Bez halogena; crna

Ovaj tekst je strojno preveden.
