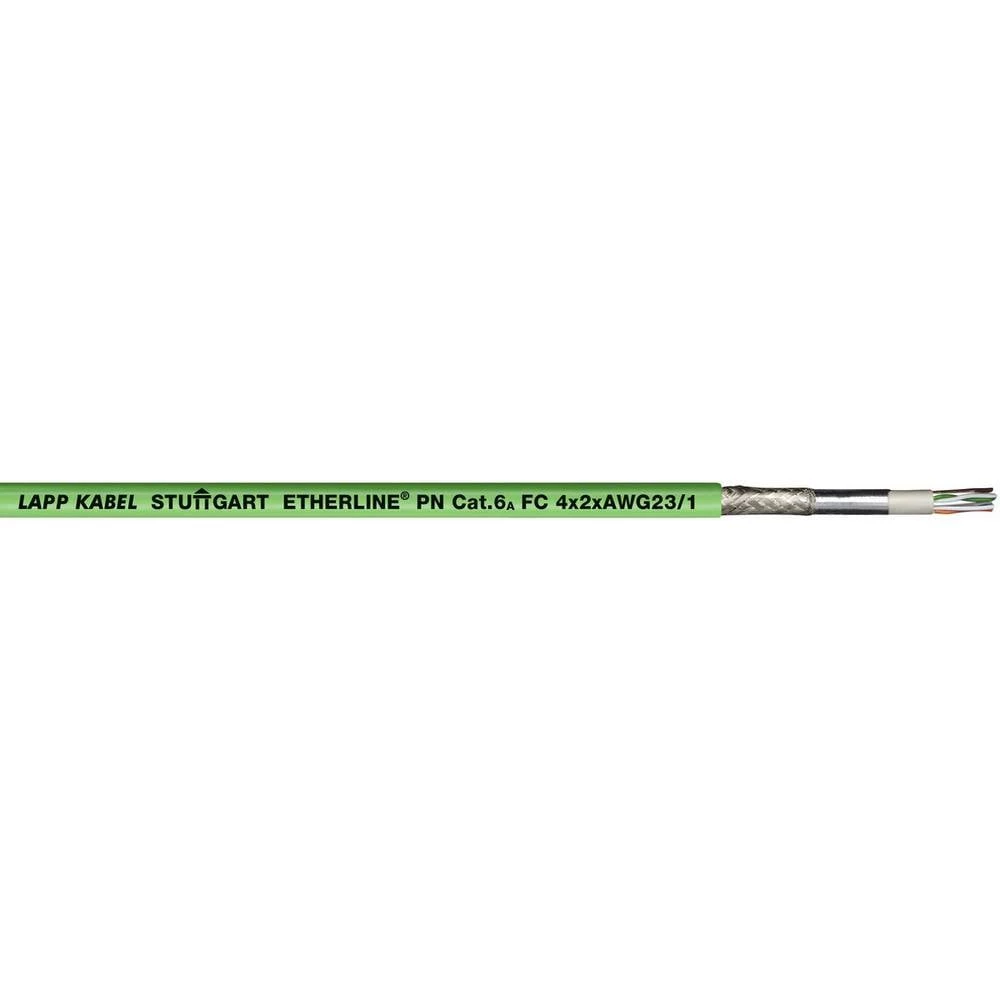

LAPP 2170583/500 mrežni kabel ETHERLINE® PN zelena 500 m

(0)

Dostupno online (Skladište: Njemačka)

Dostava: 19.06.2025 do 21.06.2025

Prodaja i slanje od: Architektengruppe S71 d.o.o.

10,950.00 KM

Komada

(0)

Prikaži recenzije

Tehničke specifikacije

Tip kabela	ETHERLINE® PN
Broj žica	8 x
Vanjski Ø	8 mm
Boja	zelena
Sadržaj	500 m
Bez halogena	ne
Proizvođač-br. dijela	2170583/500
Izolacijski material	polivinilhlorid
Raspon temperature, fiksna instalacija (min.)	-40 °C
Raspon temperature, fiksna instalacija (maks.)	80 °C
Tip	ETHERLINE® PN CAT.6A Y FC
UV resistant	FALSE
Material core insulation	Other
Colour outer sheath	Green
Conductor material	Copper
Material outer sheath	Polyvinyl chloride (PVC)
Permitted cable outer temperature after assembling without vibration	-40-+80 °C
Number of cores	8
Halogen free according to EN IEC 60754-2	FALSE
Low smoke according to EN IEC 61034-2	FALSE
Outer diameter approximate	8.9 mm
Low smoke (according to EN 61034-2)	FALSE
Oil resistant according to EN IEC 60811-404	TRUE
Conductor surface	Bare
AWG size	Other
Min. permitted bending radius, stationary application/permanent installation	35.6 mm
Specification core insulation	Other
Specification material outer sheath	Other
Cable geometry	Round
Core identification according to HD 308 S2	FALSE
Vrsta proizvoda	mrežni kabel
