Podatkovni kabeli

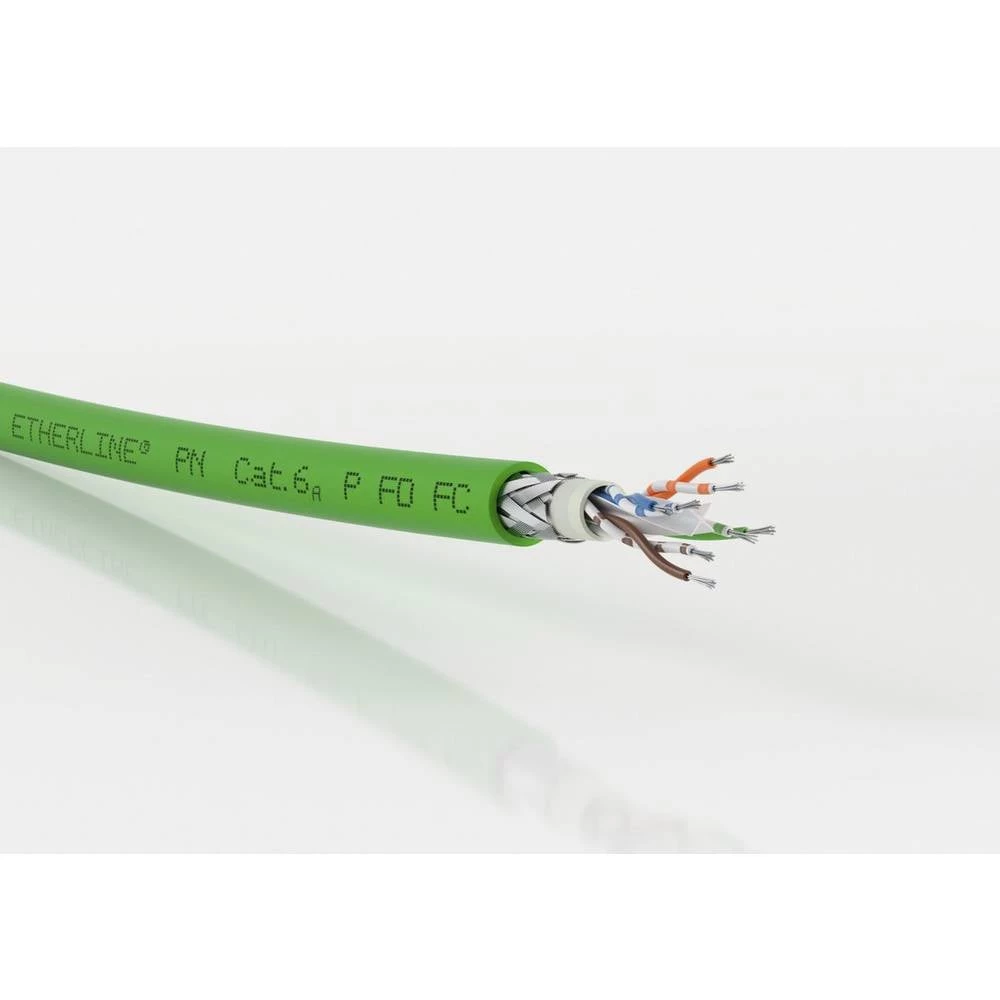

LAPP 2170590/1000 mrežni kabel ETHERLINE® PN zelena 1000 m

Kataloški br:: 3350873 - 62
Oznaka:: 2170590/1000
EAN:: 4044777942183

(0)

Kataloški br:: 3350873 - 62
Oznaka:: 2170590/1000
EAN:: 4044777942183

Dostupno online (Skladište: Njemačka)

Dostava: 19.06.2025 do 21.06.2025

Prodaja i slanje od: Architektengruppe S71 d.o.o.

19,220.00 KM

sa PDV Troškovi dostave

Komada

(0)

Prikaži recenzije

Tehničke specifikacije

Tip kabela	ETHERLINE® PN
Broj žica	8 x
Vanjski Ø	8 mm
Boja	zelena
Sadržaj	1000 m
Bez halogena	ne
Proizvođač-br. dijela	2170590/1000
Izolacijski material	poliuretan
Raspon temperature, fiksna instalacija (min.)	-40 °C
Raspon temperature, fiksna instalacija (maks.)	80 °C
Tip	ETHERLINE® PN Cat. 6A P FD FC
UV resistant	TRUE
Material core insulation	Other
Colour outer sheath	Green
Conductor material	Copper
Material outer sheath	Polyurethane (PUR)
Permitted cable outer temperature after assembling without vibration	-40-80 °C
Number of cores	8
Halogen free according to EN IEC 60754-2	FALSE
Low smoke according to EN IEC 61034-2	FALSE
Outer diameter approximate	8.9 mm
Low smoke (according to EN 61034-2)	FALSE
Halogen free according to EN 60754-1/2	FALSE
Oil resistant according to EN IEC 60811-404	TRUE
Conductor surface	Bare
AWG size	Other
Min. permitted bending radius, moving application with forced guidance	133.5 mm
Min. permitted bending radius, moving application/free movement	133.5 mm
Min. permitted bending radius, stationary application/permanent installation	35.6 mm
Specification core insulation	Other
Specification material outer sheath	Other
Cable geometry	Round
Core identification according to HD 308 S2	FALSE
Vrsta proizvoda	mrežni kabel

Opis

ETHERLINE® PN kat. 6A P FD FC Ethernet kabel; lanac za vuču, fleksibilan; PROFINET® Primjena: Tip C; Cat.6A; SF/UTP; ČISTA; Bez halogena; zelena

Ovaj tekst je strojno preveden.
