LAPP 2170606/500 mrežni kabel ETHERLINE® PN zelena 500 m

Kataloški br:: 3350896 - 62
Oznaka:: 2170606/500
EAN:: 4044778415754

(0)

Kataloški br:: 3350896 - 62
Oznaka:: 2170606/500
EAN:: 4044778415754

Dostupno online (Skladište: Njemačka)

Dostava: 19.06.2025 do 21.06.2025

Prodaja i slanje od: Architektengruppe S71 d.o.o.

7,155.00 KM

sa PDV Troškovi dostave

Komada

(0)

Prikaži recenzije

Tehničke specifikacije

Tip kabela	ETHERLINE® PN
Broj žica	8 x
Vanjski Ø	8 mm
Boja	zelena
Sadržaj	500 m
Bez halogena	da/ne
Proizvođač-br. dijela	2170606/500
Raspon temperature, fiksna instalacija (min.)	-30 °C
Raspon temperature, fiksna instalacija (maks.)	80 °C
Tip	ETHERLINE® PN CAT.7 FRNC A
UV resistant	FALSE
Nominal cross section conductor	0.25 mm²
Material core insulation	Other
Core identification	Colour
Colour outer sheath	Green
Conductor material	Copper
Material outer sheath	Other
Permitted cable outer temperature after assembling without vibration	-30-80 °C
Number of cores	8
Halogen free according to EN IEC 60754-2	FALSE
Low smoke according to EN IEC 61034-2	FALSE
Outer diameter approximate	8.1 mm
Low smoke (according to EN 61034-2)	FALSE
Halogen free according to EN 60754-1/2	TRUE
Conductor surface	Bare
AWG size	Other
Min. permitted bending radius, moving application/free movement	67.2 mm
Min. permitted bending radius, stationary application/permanent installation	64.8 mm
Specification core insulation	Other
Specification material outer sheath	Other
Cable geometry	Round
Core identification according to HD 308 S2	FALSE
Vrsta proizvoda	mrežni kabel

Opis

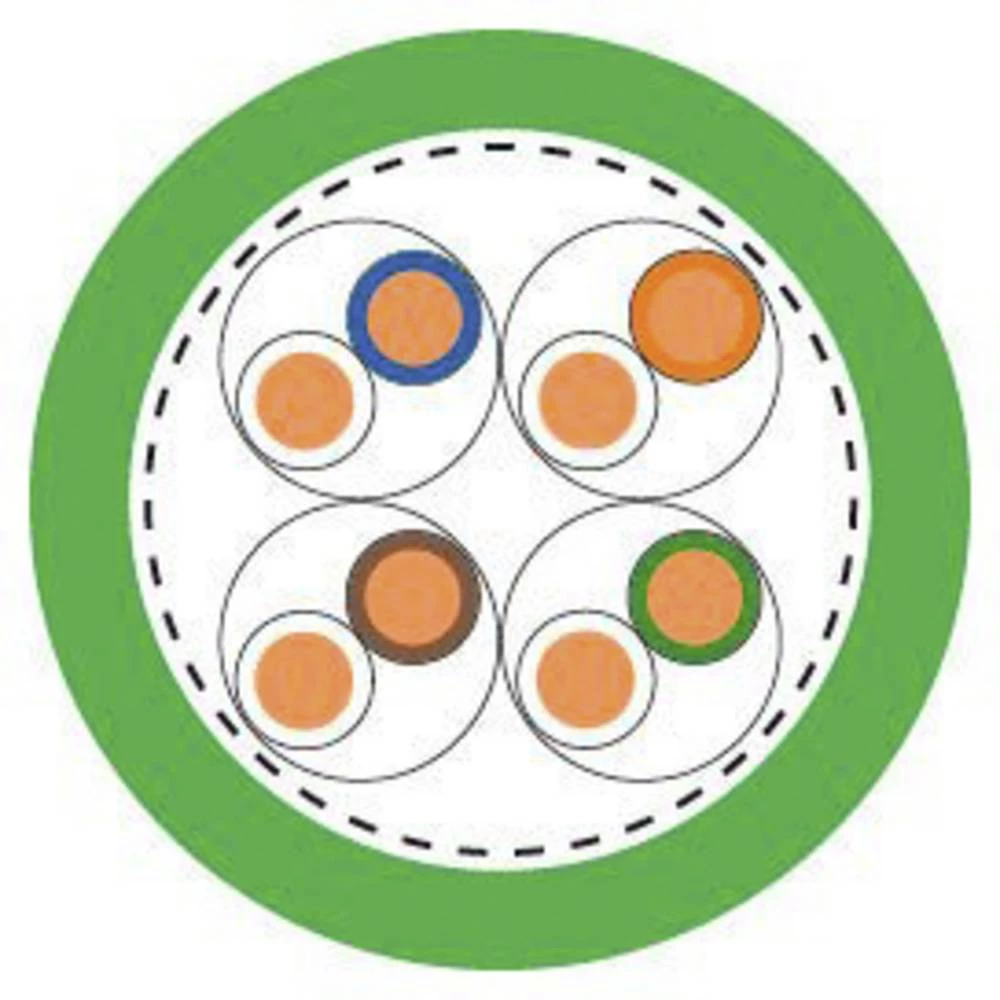

ETHERLINE® PN CAT.7 FRNC A Ethernet kabel; fiksno polaganje; ETHERNET/IP, PROFINET; PROFINET® Primjena: Tip A; Kat.7; S/FTP; LSZH; Bez halogena; zelena

Ovaj tekst je strojno preveden.
