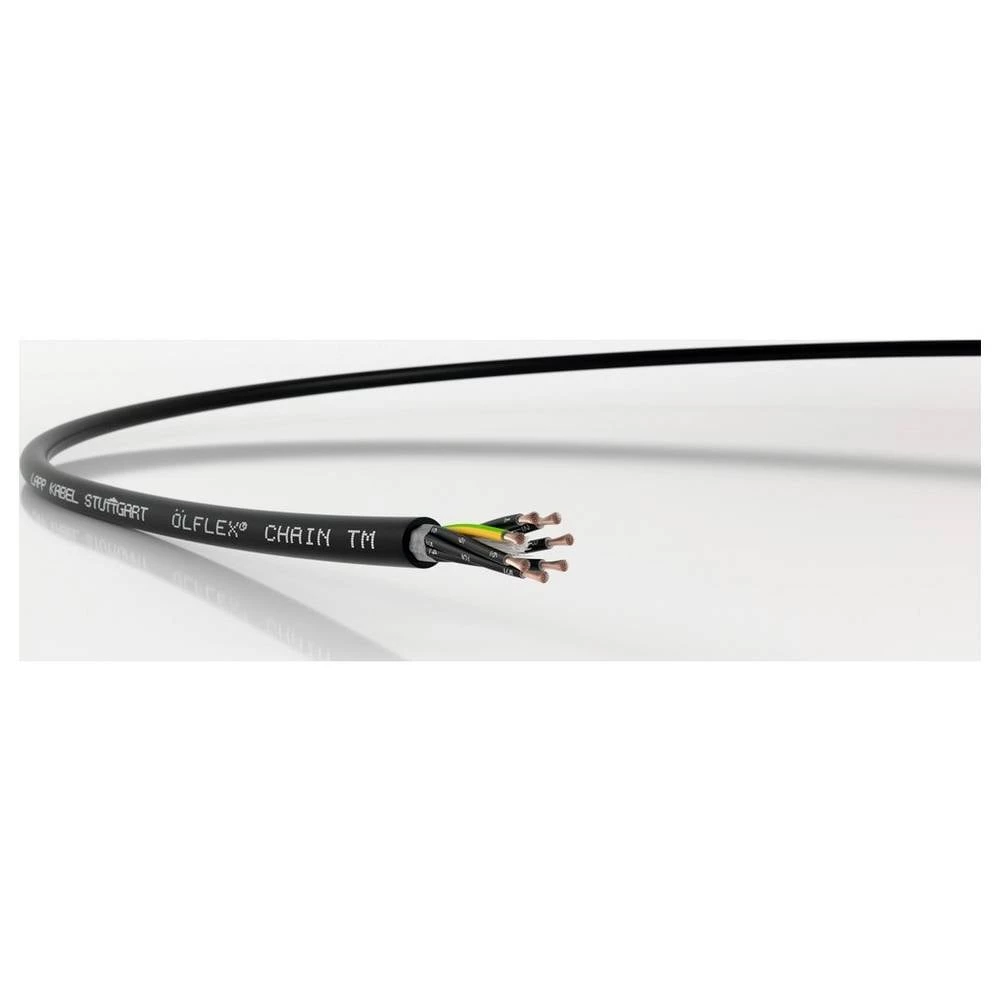

LAPP kontrolni vod 4 x 1 mm² 8718040/100 100 m

(0)

Dostupno online (Skladište: Njemačka)

Dostava: 24.03.2026 do 30.03.2026

Prodaja i slanje od: Architektengruppe S71 d.o.o.

0.00 KM

Komada

(0)

Prikaži recenzije

Tehničke specifikacije

Sadržaj	100 m
Presjek	4 x 1 mm²
Poprečni presjek (po žili)	1 mm²
Proizvođač-br. dijela	8718040/100
Tip	ÖLFLEX® CHAIN TM 4G18AWG
Nazivni napon	500 V
Vanjski Ø	8.6 mm
Nazivni napon U0	300 V
Broj žica	4 x
Nominal cross section conductor	1 mm²
Material core insulation	Polyvinyl chloride (PVC)
Core identification	Numbers
Nominal voltage U	500 V
Colour outer sheath	Black
Conductor material	Copper
Material outer sheath	Polyvinyl chloride (PVC)
Conductor category	Class 6 = very flexible
Permitted cable outer temperature after assembling without vibration	-40-105 °C
Nominal voltage U0	300 V
Number of cores	4
Outer diameter approximate	8.6 mm
With protective conductor	TRUE
Low smoke (according to EN 61034-2)	FALSE
Conductor surface	Bare
AWG size	Other
Min. permitted bending radius, moving application with forced guidance	64.5 mm
Min. permitted bending radius, moving application/free movement	64.5 mm
Min. permitted bending radius, stationary application/permanent installation	43.0 mm
Specification core insulation	Other
Specification material outer sheath	Other
Cable geometry	Round
Core identification according to HD 308 S2	FALSE
Vrsta proizvoda	kontrolni vod
