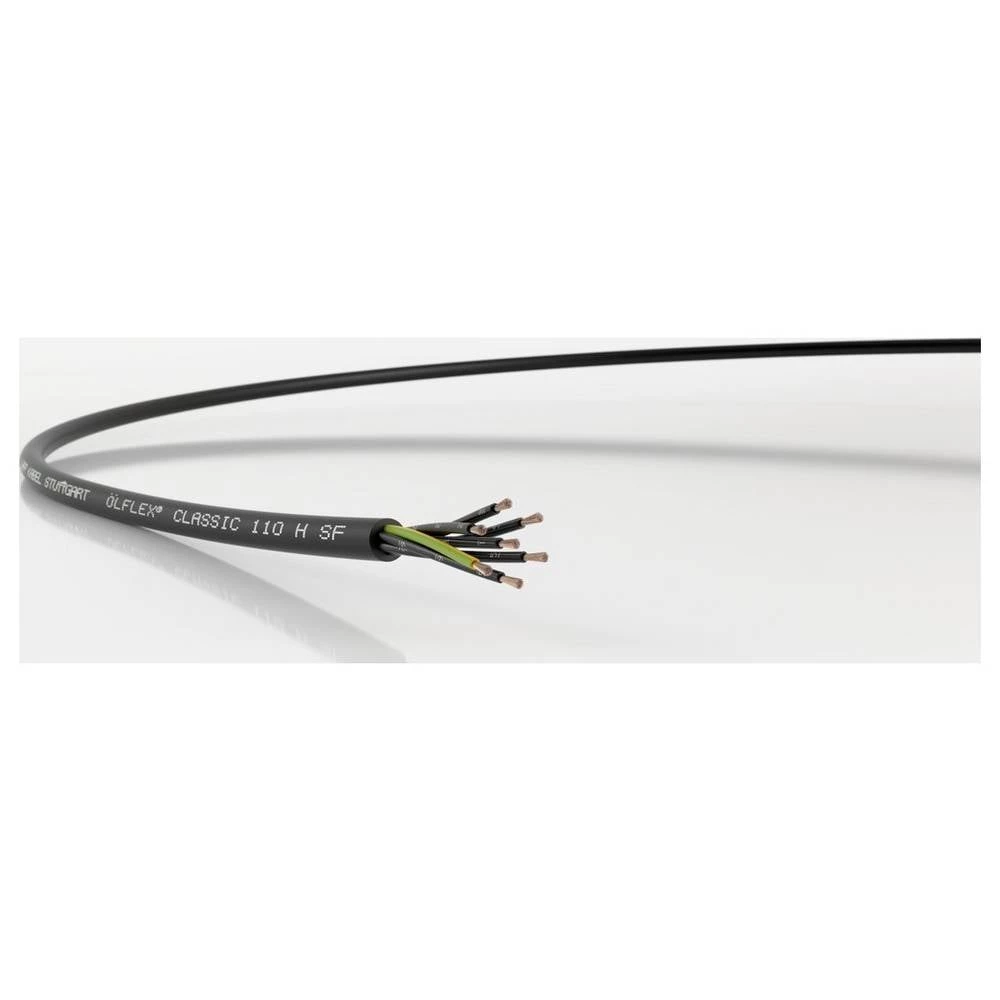

LAPP kontrolni vod 5 x 0.5 mm² 1002140/500 500 m

(0)

Dostupno online (Skladište: Njemačka)

Dostava: 24.03.2026 do 30.03.2026

Prodaja i slanje od: Architektengruppe S71 d.o.o.

3,800.00 KM

Komada

(0)

Prikaži recenzije

Tehničke specifikacije

Sadržaj	500 m
Presjek	5 x 0.5 mm²
Poprečni presjek (po žili)	0.5 mm²
Proizvođač-br. dijela	1002140/500
Tip	ÖLFLEX® CLASSIC 110 H SF 5G0,5
Nazivni napon	500 V
Vanjski Ø	6.3 mm
Nazivni napon U0	300 V
Broj žica	5 x
Nominal cross section conductor	0.5 mm²
Material core insulation	Other
Core identification	Numbers
Nominal voltage U	500 V
Colour outer sheath	Black
Conductor material	Copper
Material outer sheath	Other
Conductor category	Class 6 = very flexible
Permitted cable outer temperature after assembling without vibration	-40-80 °C
Nominal voltage U0	300 V
Number of cores	5
Outer diameter approximate	6.3 mm
With protective conductor	TRUE
Low smoke (according to EN 61034-2)	TRUE
Halogen free according to EN 60754-1/2	TRUE
Conductor surface	Bare
Min. permitted bending radius, moving application/free movement	63.0 mm
Min. permitted bending radius, stationary application/permanent installation	25.2 mm
Specification core insulation	Other
Specification material outer sheath	Other
Cable geometry	Round
Core identification according to HD 308 S2	FALSE
Vrsta proizvoda	kontrolni vod
