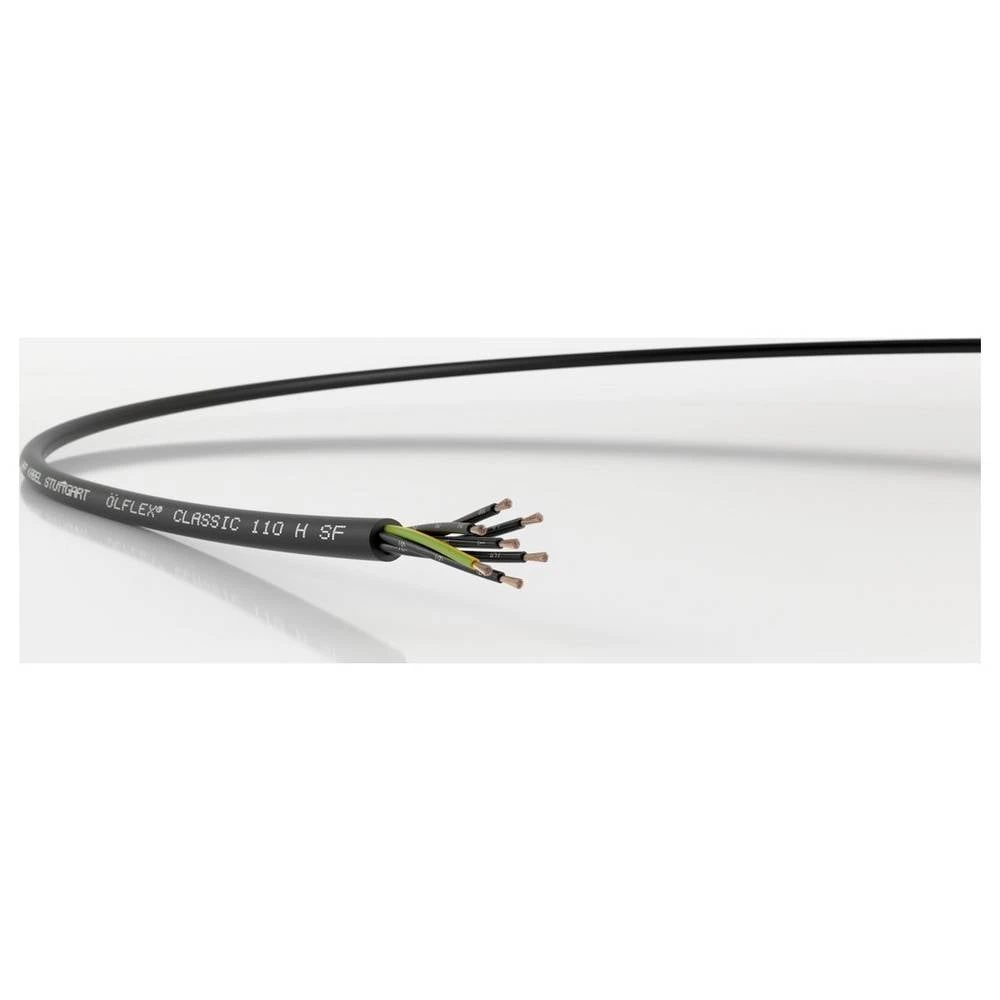

LAPP kontrolni vod 5 x 1 mm² 1002142/1000 1000 m

(0)

Dostupno online (Skladište: Njemačka)

Dostava: 24.03.2026 do 30.03.2026

Prodaja i slanje od: Architektengruppe S71 d.o.o.

11,800.00 KM

Komada

(0)

Prikaži recenzije

Tehničke specifikacije

Sadržaj	1000 m
Presjek	5 x 1 mm²
Poprečni presjek (po žili)	1 mm²
Proizvođač-br. dijela	1002142/1000
Tip	ÖLFLEX® CLASSIC 110 H SF 5G1
Nazivni napon	500 V
Vanjski Ø	7.3 mm
Nazivni napon U0	300 V
Broj žica	5 x
Nominal cross section conductor	1 mm²
Material core insulation	Other
Core identification	Numbers
Nominal voltage U	500 V
Colour outer sheath	Black
Conductor material	Copper
Material outer sheath	Other
Conductor category	Class 6 = very flexible
Permitted cable outer temperature after assembling without vibration	-40-80 °C
Nominal voltage U0	300 V
Number of cores	5
Outer diameter approximate	7.3 mm
With protective conductor	TRUE
Low smoke (according to EN 61034-2)	TRUE
Halogen free according to EN 60754-1/2	TRUE
Conductor surface	Bare
Min. permitted bending radius, moving application/free movement	73.0 mm
Min. permitted bending radius, stationary application/permanent installation	29.2 mm
Specification core insulation	Other
Specification material outer sheath	Other
Cable geometry	Round
Core identification according to HD 308 S2	FALSE
Vrsta proizvoda	kontrolni vod

Prosječna ocjena

0.00 od 5 zvjezdica

Još nema recenzija ovog proizvoda, ali to možete promijeniti.
