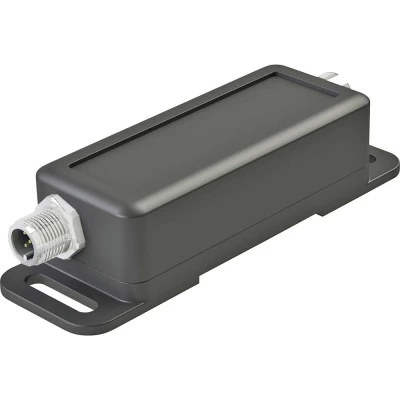

LED2WORK modul za zatamnjenje DIMMmodul RGB-W 96 W 24 V/DC 1 St.
- Kataloški br:
- 3384521 - 62
- Oznaka:
- 210700-08
- EAN:
- 4260556627571
- Kataloški br:
- 3384521 - 62
- Oznaka:
- 210700-08
- EAN:
- 4260556627571
LED2WORK modul za zatamnjenje DIMMmodul RGB-W 96 W 24 V/DC 1 St.
0.00 KM
Komada
Prodaja i slanje od:
Architektengruppe S71 d.o.o.
0.00 KM
sa PDV
Troškovi dostave
Komada
Tehničke specifikacije
Tehničke specifikacije
| Tip | DIMMmodul RGB-W |
| Radni napon | 24 V/DC |
| Snaga | 96 W |
| Vrsta zaštite | IP54 |
| Razred zaštite | III |
| Min. temperatura | -20 °C |
| Maks. temperatura | +50 °C |
| Klasa energetske učinkovitosti | n.rel. (EENRPS00) |
| Mounting method | Other |
| Assembly arrangement | Basic element with complete housing |
| Method of operation | Turn button |
| Colour | Black |
| Halogen free | TRUE |
| Number of units | 1 |
| Connection type | Other |
| Surface protection | Untreated |
| Power consumption | 96 W |
| Frequency | 50-60 Hz |
| Material quality | Thermoplastic |
| Type of load | Other |
| Material | Plastic |
| Type of fastening | Mounting with screw |
| Light value memory | FALSE |
| Substation input | FALSE |
| RAL-number (similar) | 9005 |
| Serial dimmer | FALSE |
| Applicable with movement sensor | TRUE |
| Applicable with transmission button | FALSE |
| Applicable with infrared button | FALSE |
| Applicable with presence indicator | TRUE |
| Applicable with button | FALSE |
| Applicable with time switch/timer | TRUE |
| Nominal voltage | 24-24 V |
| Control voltage | 24-24 V |
| Transparent | FALSE |
| Surface finishing | Matt |
| Suitable for degree of protection (IP) | IP54 |
| Device width | 38 mm |
| Device height | 29 mm |
| Device depth | 122 mm |
| Number of modules (module system) | 1 |
| IFTTT support available | FALSE |
| Dimming phase cut-off (trailing edge) | FALSE |
| Dimming phase cut-on (leading edge) | FALSE |
| Min. depth of built-in installation box | 0 mm |
| App control via Bluetooth | FALSE |
| Nominal power resistive load | 0-0 W |
| Nominal power inductive load | 0-0 VA |
| Nominal power capacitive load | 0-0 VA |
| Compatible with Apple HomeKit | FALSE |
| Compatible with Google Assistant | FALSE |
| Compatible with Amazon Alexa | FALSE |
| Max. switching power LED | 96 W |
| Min. brightness controllable | FALSE |
| Vrsta proizvoda | modul za zatamnjenje |
Opis
Opis
DIMM modul za 24V DC RGB-W svjetla je 4-kanalni dimer s maksimalnim strujnim opterećenjem od 4 A. Dodjela pinova je sljedeća: PIN 1 ulaz/izlaz: 24 V DC / -, PIN 2 ulaz/izlaz Izlaz: digitalni ulaz / -, PIN 3 ulaz/izlaz: GND / GND, PIN 4 ulaz/izlaz: digitalni ulaz / +24V izlaz, PIN 5 ulaz/izlaz: digitalni ulaz / -. Svjetlinom se upravlja preko vanjske kontrole.
Ovaj tekst je strojno preveden.
