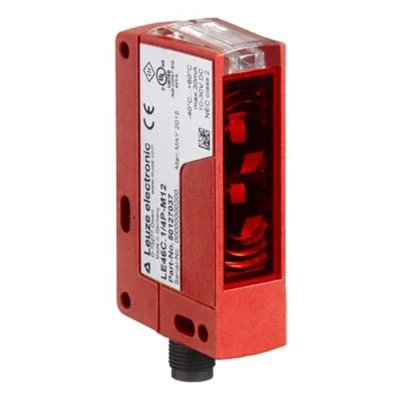

Leuze Electronic refleksna svjetlosna barijera 50127012 50127012 1 St.
- Kataloški br:
- 2982414 - 62
- Oznaka:
- 50127012
- EAN:
- 2050009557614
- Kataloški br:
- 2982414 - 62
- Oznaka:
- 50127012
- EAN:
- 2050009557614
Leuze Electronic refleksna svjetlosna barijera 50127012 50127012 1 St.
615.00 KM
Komada
Prodaja i slanje od:
Architektengruppe S71 d.o.o.
615.00 KM
sa PDV
Troškovi dostave
Komada
Tehničke specifikacije
Tehničke specifikacije
| Tip | 50127012 |
| Sadržaj | 1 St. |
| Voltage type | DC |
| Max. output current | 100 mA |
| Housing material | Plastic |
| Suitable for safety functions | FALSE |
| Ambient temperature | -40-60 °C |
| With time function | FALSE |
| Switching frequency | 500 Hz |
| Number of semiconductor outputs with signalling function | 2 |
| Type of electric connection | Connector M12 |
| Type of switching output | PNP |
| Type of switch function | Other |
| Rated control supply voltage DC | 10-30 V |
| Operation agent-safety class | Safety class 3 |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Construction type housing | Cuboid |
| Laser protection class | None |
| Type of light | Polarized red light |
| Min. reflector distance | 100 mm |
| With monitoring function downstream switching devices | FALSE |
| With restart blockage | FALSE |
| Response time | 1 ms |
| Pre failure notice | FALSE |
| Wavelength of the sensor | 630 nm |
| Material of optical surface | Plastic |
| Degree of protection (IP) | IP67 |
| Analogue output 0 V ... 10 V | FALSE |
| Analogue output 0 mA ... 20 mA | FALSE |
| Analogue output -10 V ... +10 V | FALSE |
| Analogue output 4 mA ... 20 mA | FALSE |
| Width sensor | 20.5 mm |
| Height of sensor | 76.3 mm |
| With communication interface analogue | FALSE |
| With communication interface AS-Interface | FALSE |
| With communication interface CANOpen | FALSE |
| With communication interface DeviceNet | FALSE |
| With communication interface Ethernet | FALSE |
| With communication interface INTERBUS | FALSE |
| With communication interface PROFIBUS | FALSE |
| With communication interface RS-232 | FALSE |
| With communication interface RS-422 | FALSE |
| With communication interface RS-485 | FALSE |
| With communication interface SSD | FALSE |
| With communication interface SSI | FALSE |
| Length of sensor | 44 mm |
| Max. switching distance | 24000 mm |
| With reflector | FALSE |
| With other analogue output | FALSE |
| Sensing mode | Light switching |
| Rated switching distance | 24000 mm |
| Vrsta proizvoda | refleksna svjetlosna barijera |
Opis
Opis
Ograničenje raspona: 0,1... 30m; Izvor svjetla: LED, crvena; Napon napajanja: 10... 30V, DC; Digitalni sklopni izlazi: 2 komada; Uklopni izlaz 1: tranzistor, PNP, uklopno svjetlo; Preklopni izlaz 2: tranzistor, PNP, tamno preklapanje; Preklopna frekvencija: 500Hz; Priključak: okrugli konektor, M12, plastični, 4-polni; Dizajn kućišta: kubični; Dimenzije: 20,5 mm x 76,3 mm x 44 mm; Materijal kućišta: plastika; Radna temperatura okoline: -40 ... 60°C; Klasa zaštite: IP 67, IP 69K
Ovaj tekst je strojno preveden.
Ovaj tekst je strojno preveden.
Ocjene kupaca
Ocjene kupaca
Prosječna ocjena
0.00 od 5 zvjezdica
Još nema recenzija ovog proizvoda, ali to možete promijeniti.
