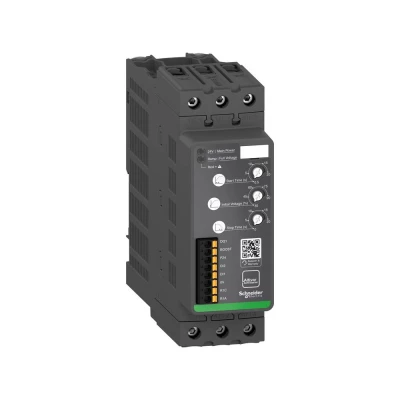

Schneider Electric ATS130N2D38LT uređaj za lagano pokretanje Snaga motora bei 400 V 18.5 kW

(0)

Dostupno online (Skladište: Njemačka)

Dostava: 06.11.2025 do 12.11.2025

Prodaja i slanje od: Architektengruppe S71 d.o.o.

0.00 KM

Komada

(0)

Prikaži recenzije

Tehničke specifikacije

Proizvođač-br. dijela	ATS130N2D38LT
Tip	ATS130N2D38LT
dim.	(Š x V x D) 55 x 166 x 165 mm
Dubina	165 mm
Visina	166 mm
Širina	55 mm
Snaga motora bei 400 V	18.5 kW
Function	Single direction
With display	FALSE
Rated operating voltage Ue	200-480.0
Rated control supply voltage AC 50 Hz	200-480.0 V
Rated control supply voltage AC 60 Hz	200-480.0 V
Rated control supply voltage DC	24-24.0 V
Degree of protection (IP)	IP20
Release class	CLASS 10
Rated operation current Ie at 40 °C Tu	38 A
Rated power three-phase motor, inline, at 230 V	11 kW
Rated power three-phase motor, inline, at 400 V	18.5 kW
Rated surrounding temperature without derating	40 °C
Integrated motor overload protection	FALSE
Voltage type for actuating	AC
Internal bypass	TRUE
Torque control	FALSE
Vrsta proizvoda	uređaj za lagano pokretanje
