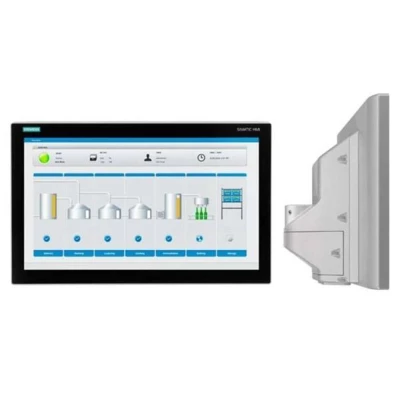

Siemens 6AV2124-0MC24-0BX0
- Kataloški br:
- 2878394 - 62
- Oznaka:
- 6AV21240MC240BX0
- EAN:
- 4047623409007
- Kataloški br:
- 2878394 - 62
- Oznaka:
- 6AV21240MC240BX0
- EAN:
- 4047623409007
Siemens 6AV2124-0MC24-0BX0
12,060.00 KM
Komada
Prodaja i slanje od:
Architektengruppe S71 d.o.o.
12,060.00 KM
sa PDV
Troškovi dostave
Komada
Tehničke specifikacije
Tehničke specifikacije
| Tip | 6AV2124-0MC24-0BX0 |
| Proizvođač-br. dijela | 6AV21240MC240BX0 |
| Built-in depth | 101 mm |
| Suitable for safety functions | FALSE |
| Screen diagonal | 12.1 mm |
| Supporting protocol for LON | FALSE |
| Number of HW-interfaces industrial Ethernet | 2 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 2 |
| Number of HW-interfaces parallel | 0 |
| Supporting protocol for TCP/IP | TRUE |
| Supporting protocol for ASI | FALSE |
| Supporting protocol for PROFIBUS | TRUE |
| Supporting protocol for CAN | FALSE |
| Supporting protocol for INTERBUS | FALSE |
| Supporting protocol for KNX | FALSE |
| Supporting protocol for Modbus | TRUE |
| Supporting protocol for Data-Highway | FALSE |
| Supporting protocol for DeviceNet | FALSE |
| Supporting protocol for SUCONET | FALSE |
| Supporting protocol for other bus systems | TRUE |
| With colour display | TRUE |
| Number of colours of the display | 16777216 |
| Number of pixels, horizontal | 1280 |
| Number of pixels, vertical | 800 |
| Number of function buttons, programmable | 0 |
| With numeric keyboard | TRUE |
| With alpha numeric keyboard | TRUE |
| Useful project memory/user memory | 12000 kB |
| With message indication | TRUE |
| With message system (incl. buffer and confirmation) | TRUE |
| Process value representation (output) possible | TRUE |
| Process default value (input) possible | TRUE |
| With recipes | TRUE |
| Number of password levels | 50 |
| With printer output | TRUE |
| Number of online languages | 32 |
| Additional software components, loadable | TRUE |
| Degree of protection (IP), front side | IP65 |
| With SW interfaces | FALSE |
| Width of the front | 313 mm |
| Height of the front | 226 mm |
| Rail mounting possible | FALSE |
| Supporting protocol for SERCOS | FALSE |
| Supporting protocol for INTERBUS-Safety | FALSE |
| Number of interfaces PROFINET | 2 |
| Number of HW-interfaces Wireless | 0 |
| Wall mounting/direct mounting | FALSE |
| Radio standard Bluetooth | FALSE |
| Radio standard Wi-Fi 802.11 | FALSE |
| IO link master | FALSE |
| Supporting protocol for AS-Interface Safety at Work | FALSE |
| Supporting protocol for DeviceNet Safety | FALSE |
| Supporting protocol for EtherNet/IP | TRUE |
| Supporting protocol for Foundation Fieldbus | FALSE |
| Supporting protocol for PROFINET CBA | FALSE |
| Supporting protocol for PROFINET IO | TRUE |
| Supporting protocol for PROFIsafe | FALSE |
| Supporting protocol for SafetyBUS p | FALSE |
| Type of display | TFT |
| Radio standard GPRS | FALSE |
| Radio standard GSM | FALSE |
| Radio standard UMTS | FALSE |
| Number of buttons with LED | 0 |
| Number of system buttons | 0 |
