Siemens 6XV18703QN10 1 St.
- Kataloški br:
- 2876027 - 62
- Oznaka:
- 6XV18703QN10
- EAN:
- 4019169404952
- Kataloški br:
- 2876027 - 62
- Oznaka:
- 6XV18703QN10
- EAN:
- 4019169404952
Siemens 6XV18703QN10 1 St.
0.00 KM
Komada
Prodaja i slanje od:
Architektengruppe S71 d.o.o.
0.00 KM
sa PDV
Troškovi dostave
Komada
Izdvojeno & Detalji
Nema značajki
Tehničke specifikacije
Tehničke specifikacije
| Sadržaj | 1 St. |
| Proizvođač-br. dijela | 6XV18703QN10 |
| Tip | 6XV1870-3QN10 |
| RoHS-konforno | Da |
| Material core insulation | Other |
| Core identification | Colour |
| Flame retardant | No |
| Stranding element | Pairs |
| Colour outer sheath | Green |
| Category | Other |
| Diameter conductor | 0.5 mm |
| Screen over stranding element | Foil |
| Screen over stranding | Braiding |
| Material outer sheath | Other |
| Number of stranding elements | 4 |
| Number of cores | 8 |
| Stranding | Bundle |
| Outer diameter approx. | 6.2 mm |
| NVP value | 80 % |
| Conductor surface | Bare |
| Reaction-to-fire class according to EN 13501-6 | Eca |
| Min. permitted bending radius, moving application with forced guidance | 43.5 |
| Min. permitted bending radius, moving application/free movement | 43.5 |
| Min. permitted bending radius, stationary application/permanent installation | 43.5 |
| Specification material outer sheath | Other |
Opis
Opis

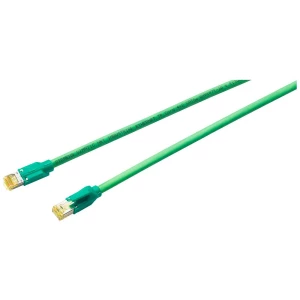

Industrial Ethernet TP Cord RJ45/RJ45, CAT 6A, TP cable 4x2, pre-assembled with 2 RJ45 connectors, length 10 m. Simple connection of terminal devices with an RJ45 interface to the interference-proof Industrial Ethernet FastConnect cabling system (10/100/1000 Mbps). Silicone-free, therefore suitable for use in the automotive industry (for example on paint lines).Quick and error-free commissioning thanks to pre-assembled, factory-tested patch cables. Simple cable laying due to small cable diameter. Color-coded RJ45 connectors for differentiation between crossed and uncrossed lines (crossed: RJ45 connector red on both sides, not crossed: RJ45 connector green on both sides).
Posebne značajke
Nema izvedbeOpseg isporuke
Nema u isporuciKomentar
Nema obavijesti
Sistemski zahtjevi
Nema sistemskih ograničenjaOcjene kupaca
