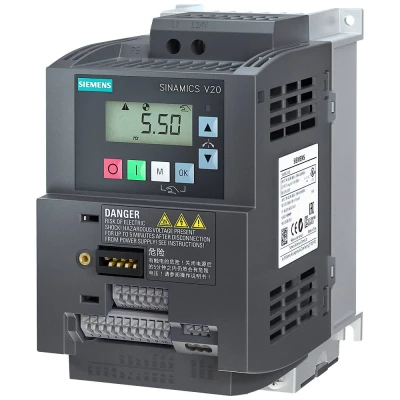

Siemens pretvarač frekvencije 6SL3210-5BB21-5BV1
- Kataloški br:
- 2873287 - 62
- Oznaka:
- 6SL32105BB215BV1
- EAN:
- 4042948676967
- Kataloški br:
- 2873287 - 62
- Oznaka:
- 6SL32105BB215BV1
- EAN:
- 4042948676967
Siemens pretvarač frekvencije 6SL3210-5BB21-5BV1
795.00 KM
Komada
Prodaja i slanje od:
Architektengruppe S71 d.o.o.
795.00 KM
sa PDV
Troškovi dostave
Komada
Tehničke specifikacije
Tehničke specifikacije
| Dubina | 147 mm |
| Visina | 160.9 mm |
| Širina | 91 mm |
| Vrsta zaštite | IP20 |
| Tip | 6SL3210-5BB21-5BV1 |
| dim. | (Š x V x D) 91 x 160.9 x 147 mm |
| Proizvođač-br. dijela | 6SL32105BB215BV1 |
| Težina | 1.4000 kg |
| Width | 91 |
| Height | 160.9 mm |
| Depth | 147 mm |
| Number of digital inputs | 4 |
| Number of analogue inputs | 2 |
| Number of analogue outputs | 1 |
| Supporting protocol for LON | FALSE |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces RS-232 | 1 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 1 |
| With optical interface | FALSE |
| Supporting protocol for TCP/IP | FALSE |
| Supporting protocol for ASI | FALSE |
| Supporting protocol for PROFIBUS | FALSE |
| Supporting protocol for CAN | FALSE |
| Supporting protocol for INTERBUS | FALSE |
| Supporting protocol for KNX | FALSE |
| Supporting protocol for Modbus | TRUE |
| Supporting protocol for Data-Highway | FALSE |
| Supporting protocol for DeviceNet | FALSE |
| Supporting protocol for SUCONET | FALSE |
| Supporting protocol for other bus systems | TRUE |
| Degree of protection (IP) | IP20 |
| With PC connection | FALSE |
| Supporting protocol for SERCOS | FALSE |
| Supporting protocol for INTERBUS-Safety | FALSE |
| 4-quadrant operation possible | FALSE |
| Number of interfaces PROFINET | 0 |
| Type of converter | U converter |
| Number of phases output | 3 |
| Number of phases input | 1 |
| Integrated breaking resistance | FALSE |
| Application in industrial area permitted | TRUE |
| Application in domestic- and commercial area permitted | TRUE |
| Max. output frequency | 550 Hz |
| Max. output at linear load at rated output voltage | 1.5 kW |
| Max. output at quadratic load at rated output voltage | 1.5 kW |
| Relative symmetric net voltage tolerance | 10 % |
| Relative symmetric net frequency tolerance | -5 % |
| Supporting protocol for AS-Interface Safety at Work | FALSE |
| Supporting protocol for DeviceNet Safety | FALSE |
| Supporting protocol for EtherNet/IP | FALSE |
| Supporting protocol for Foundation Fieldbus | FALSE |
| Supporting protocol for PROFINET CBA | FALSE |
| Supporting protocol for PROFINET IO | FALSE |
| Supporting protocol for PROFIsafe | FALSE |
| Supporting protocol for SafetyBUS p | FALSE |
| Max. output voltage | 240 V |
| Nominal output current I2N | 7.8 A |
| Vrsta proizvoda | pretvarač frekvencije |
