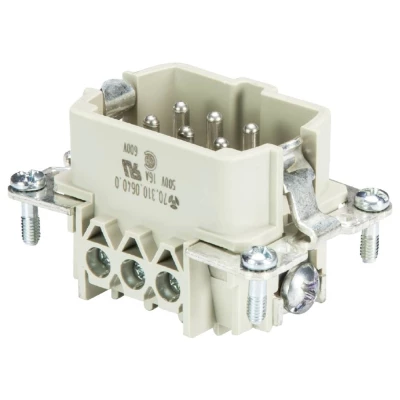

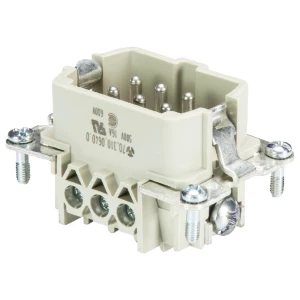

Wieland Electric 70.310.0640.0 umetak utikača Ukupan broj polova 6 10 St.

(0)

Dostupno online (Skladište: Njemačka)

Dostava: 02.11.2025 do 08.11.2025

Prodaja i slanje od: Architektengruppe S71 d.o.o.

0.00 KM

Komada

(0)

Prikaži recenzije

Tehničke specifikacije

Broj polova	6
Ukupan broj polova	6
Priključak	vijak
Nazivna struja	16 A
Poprečni presjek vodiča (min.)	0.5 mm²
Poprečni presjek vodiča (maks.)	2.5 mm²
Width	34 mm
Height	32 mm
With wire protection	TRUE
Number of poles	6
Contact type	Pin
Ambient temperature	-40-120 °C
Operating temperature	-40-120 °C
Inflammability class of insulation material according to UL94	V0
Rated surge voltage	6 kV
Type of electric connection	Screw connection
Material of contact surface	Tin
Pollution degree	3
Connectable conductor cross section solid-core	0.5-2.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.5-2.5 mm²
Connectable conductor cross section multi-wired	0.5-2.5 mm²
With protective conductor	TRUE
Rated current In	16 A
Vrsta proizvoda	umetak utikača

Prosječna ocjena

0.00 od 5 zvjezdica

Još nema recenzija ovog proizvoda, ali to možete promijeniti.
