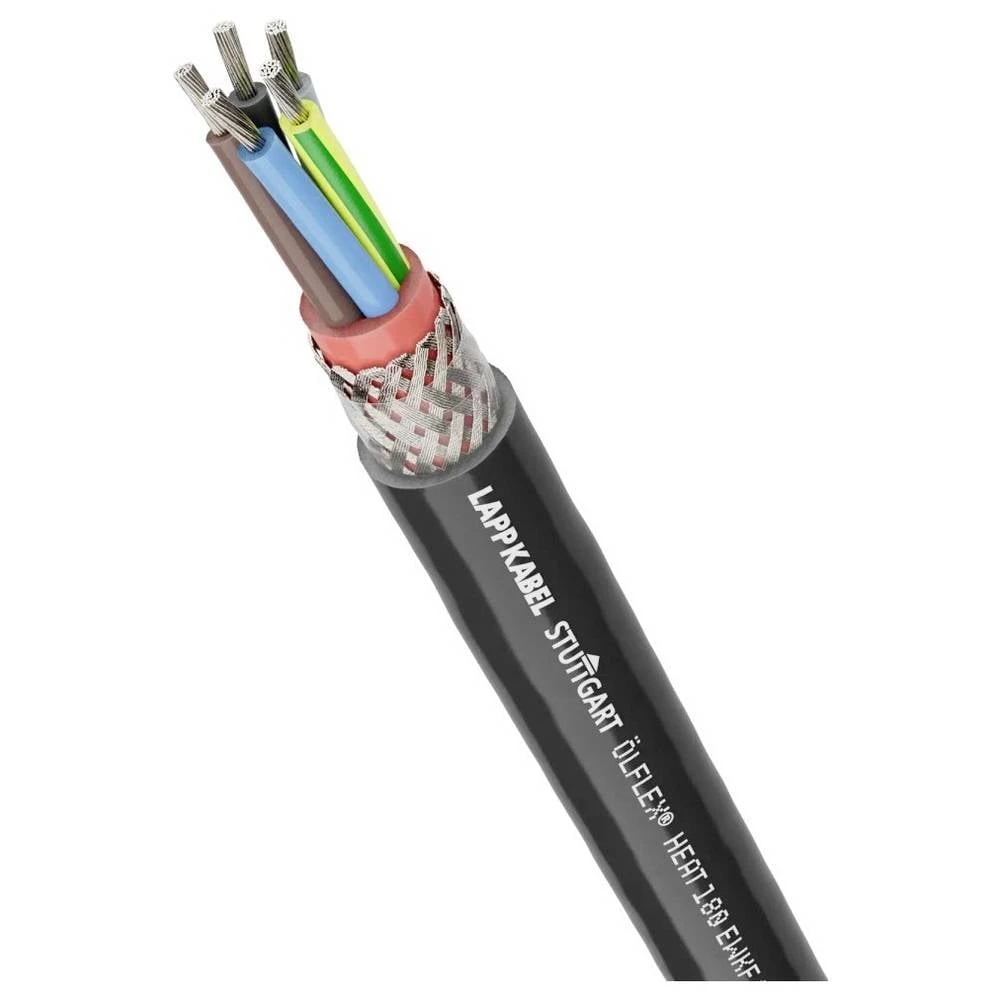

LAPP 0046312/50 priključni vod 7 x 1 mm² 50 m

(0)

Dostupno online (Skladište: Njemačka)

Dostava: 24.11.2025 do 30.11.2025

Prodaja i slanje od: Architektengruppe S71 d.o.o.

0.00 KM

Komada

(0)

Prikaži recenzije

Tehničke specifikacije

Broj žica	7 x
Poprečni presjek (po žili)	1 mm²
Presjek	7 x 1 mm²
Vanjski Ø	12.3 mm
Sadržaj	50 m
Nazivni napon	500 V
Nazivni napon U0	300 V
Proizvođač-br. dijela	0046312/50
Tip	ÖLFLEX® HEAT 180 EWKF C 7G1
Nominal cross section conductor	1 mm²
Material core insulation	Other
Core identification	Numbers
Flame retardant	According to IEC/EN 60332-1-2
Nominal voltage U	500 V
Colour outer sheath	Black
Conductor material	Copper
Material outer sheath	Other
Conductor category	Class 5 = flexible
Permitted cable outer temperature after assembling without vibration	-50-180 °C
Nominal voltage U0	300 V
Number of cores	7
Outer diameter approximate	12.3 mm
With protective conductor	TRUE
Low smoke (according to EN 61034-2)	FALSE
Halogen free according to EN 60754-1/2	TRUE
Conductor surface	Tinned
Min. permitted bending radius, moving application/free movement	246.0 mm
Min. permitted bending radius, stationary application/permanent installation	73.8 mm
Specification core insulation	Other
Specification material outer sheath	Rubber - silicone rubber (SIR)
Cable geometry	Round
Core identification according to HD 308 S2	FALSE
Vrsta proizvoda	priključni vod
