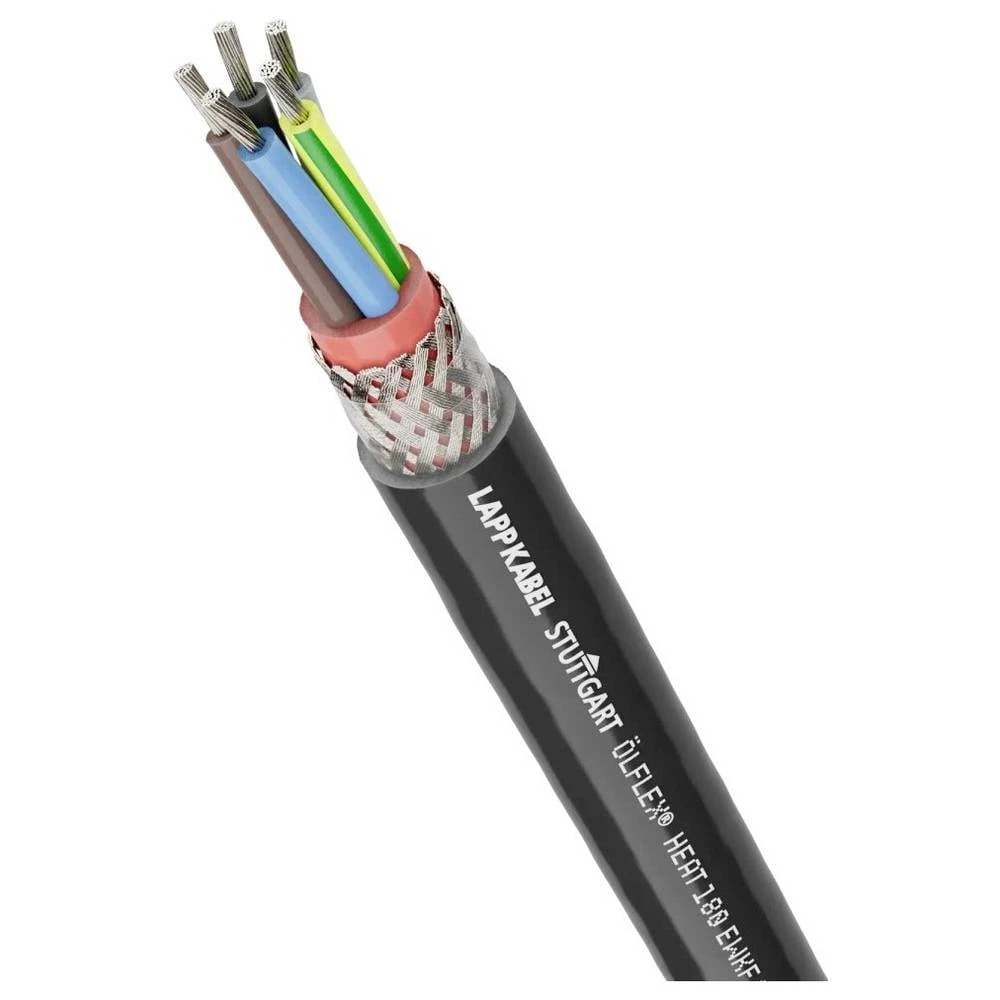

LAPP 0046314/50 priključni vod 3 x 1.5 mm² 50 m

(0)

Dostupno online (Skladište: Njemačka)

Dostava: 19.06.2025 do 21.06.2025

Prodaja i slanje od: Architektengruppe S71 d.o.o.

1,270.00 KM

Komada

(0)

Prikaži recenzije

Tehničke specifikacije

Broj žica	3 x
Poprečni presjek (po žili)	1.5 mm²
Presjek	3 x 1.5 mm²
Vanjski Ø	11.2 mm
Sadržaj	50 m
Nazivni napon	500 V
Nazivni napon U0	300 V
Proizvođač-br. dijela	0046314/50
Tip	ÖLFLEX® HEAT 180 EWKF C 3G1,5
Nominal cross section conductor	1.5 mm²
Material core insulation	Other
Core identification	Colour
Flame retardant	According to IEC/EN 60332-1-2
Nominal voltage U	500 V
Colour outer sheath	Black
Conductor material	Copper
Material outer sheath	Other
Conductor category	Class 5 = flexible
Permitted cable outer temperature after assembling without vibration	-50-180 °C
Nominal voltage U0	300 V
Number of cores	3
Outer diameter approximate	11.2 mm
With protective conductor	TRUE
Low smoke (according to EN 61034-2)	FALSE
Halogen free according to EN 60754-1/2	TRUE
Conductor surface	Tinned
Min. permitted bending radius, moving application/free movement	224.0 mm
Min. permitted bending radius, stationary application/permanent installation	67.2 mm
Specification core insulation	Other
Specification material outer sheath	Rubber - silicone rubber (SIR)
Cable geometry	Round
Core identification according to HD 308 S2	TRUE
Vrsta proizvoda	priključni vod
