LAPP 1023473/500 priključni vod 500 m

(0)

Dostupno online (Skladište: Njemačka)

Dostava: 19.06.2025 do 21.06.2025

Prodaja i slanje od: Architektengruppe S71 d.o.o.

43,110.00 KM

Komada

(0)

Prikaži recenzije

Tehničke specifikacije

Vanjski Ø	20.5 mm
Sadržaj	500 m
Nazivni napon	1000 V
Nazivni napon U0	600 V
Proizvođač-br. dijela	1023473/500

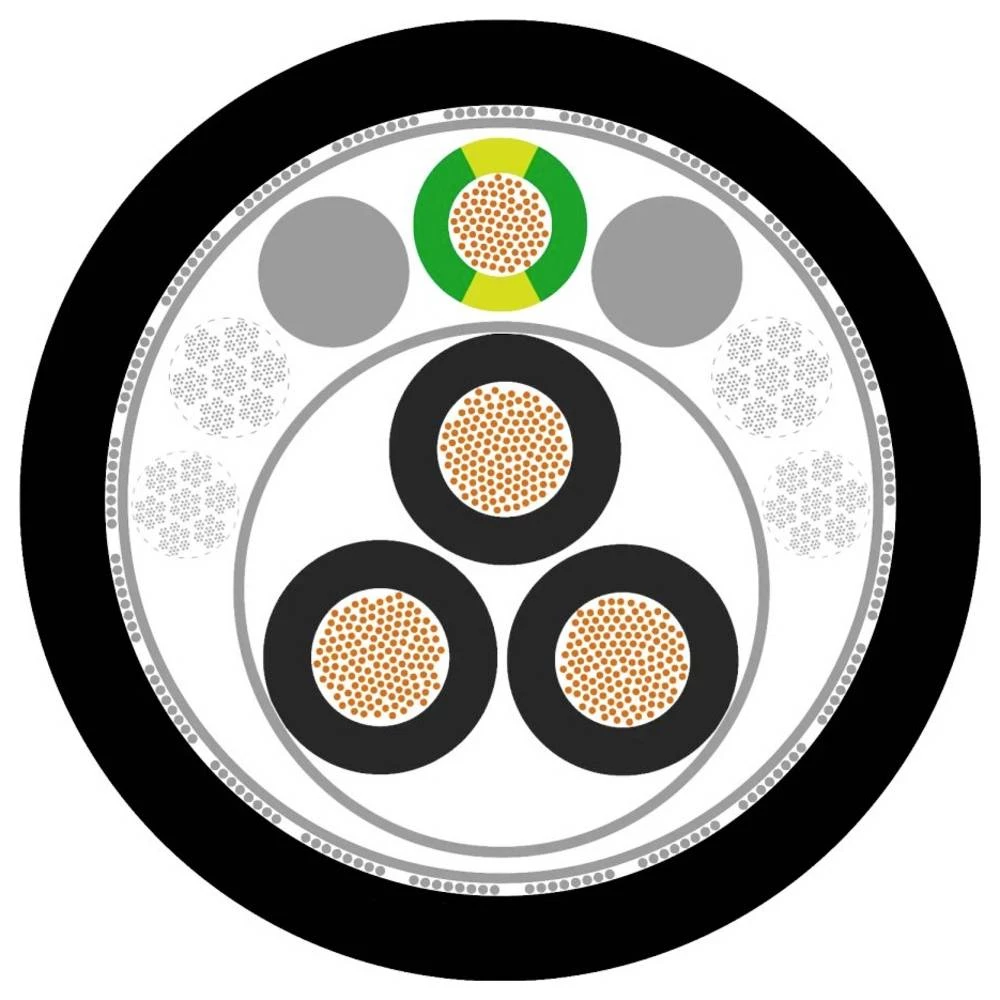

Tip	ÖLFLEX® SERVO FD zeroCM 3X6+1G4
Nominal voltage U	1 kV
Colour outer sheath	Black
Material outer sheath	Polyurethane (PUR)
Number of main cores	4
Identification main cores	Other
Nominal voltage U0	0.6 kV
Outer diameter approximate	20.5 mm
With protective conductor	TRUE
Oil resistant according to EN IEC 60811-404	FALSE
AWG size main conductors	10
Min. permitted bending radius, moving application with forced guidance	205.0 mm
Min. permitted bending radius, moving application/free movement	205.0 mm
Min. permitted bending radius, stationary application/permanent installation	102.5 mm
Specification material outer sheath	Other
Cable geometry	Round
Vrsta proizvoda	priključni vod
