LAPP 11101111/500 priključni vod 500 m

(0)

Dostupno online (Skladište: Njemačka)

Dostava: 24.11.2025 do 30.11.2025

Prodaja i slanje od: Architektengruppe S71 d.o.o.

23,700.00 KM

Komada

(0)

Prikaži recenzije

Tehničke specifikacije

Vanjski Ø	18.3 mm
Sadržaj	500 m
Nazivni napon	1500 V
Nazivni napon U0	750 V
Proizvođač-br. dijela	11101111/500

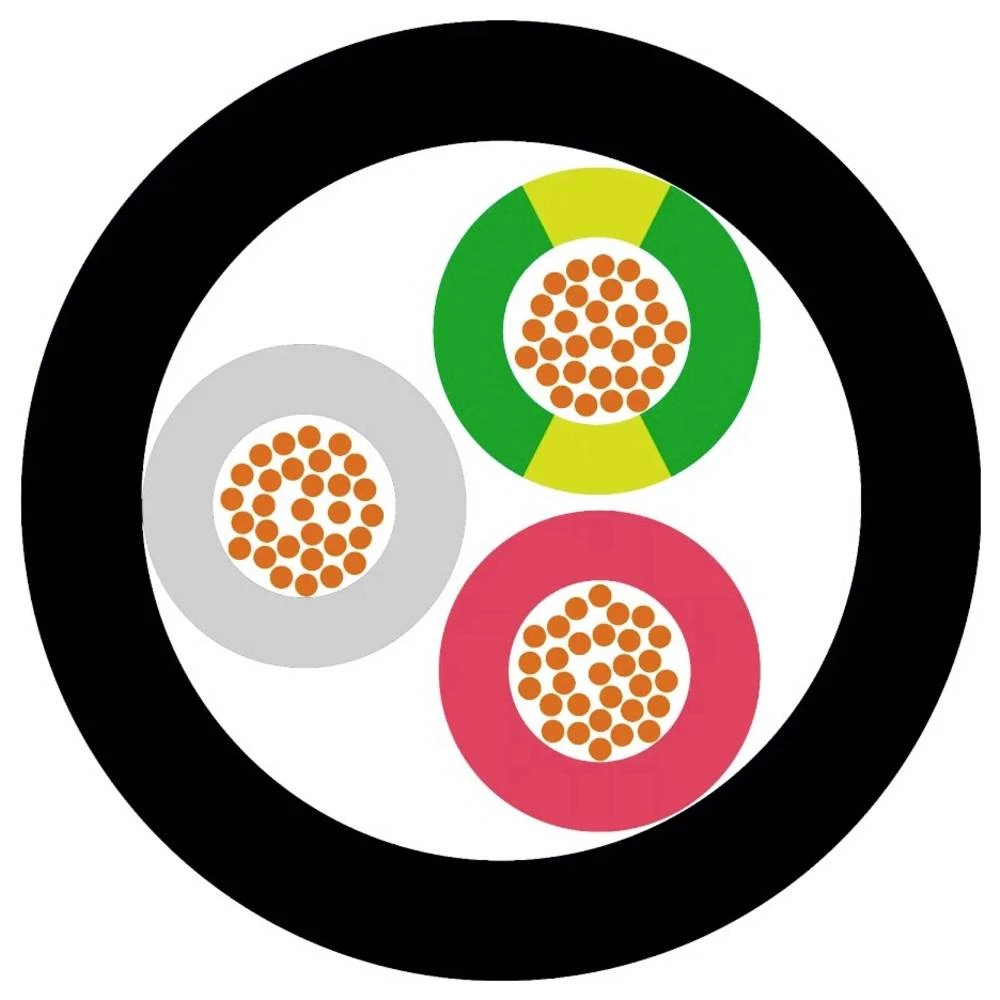

Tip	ÖLFLEX® DC 100 3G16
Material core insulation	Polyvinyl chloride (PVC)
Flame retardant	According to IEC/EN 60332-1-2
Nominal voltage U	1.5 kV
Colour outer sheath	Black
Material outer sheath	Polyvinyl chloride (PVC)
Permitted cable outer temperature after assembling without vibration	-40-80 °C
Number of main cores	3
Nominal cross section main conductors	16 mm²
Identification main cores	Colour
Nominal voltage U0	0.75 kV
Outer diameter approximate	18.3 mm
With protective conductor	TRUE
Min. permitted bending radius, moving application/free movement	274.5 mm
Min. permitted bending radius, stationary application/permanent installation	73.2 mm
Specification core insulation	Other
Specification material outer sheath	Other
Cable geometry	Round
Vrsta proizvoda	priključni vod
