LAPP 1133601/500 priključni vod 500 m

(0)

Dostupno online (Skladište: Njemačka)

Dostava: 19.06.2025 do 21.06.2025

Prodaja i slanje od: Architektengruppe S71 d.o.o.

8,425.00 KM

Komada

(0)

Prikaži recenzije

Tehničke specifikacije

Vanjski Ø	12.1 mm
Sadržaj	500 m
Nazivni napon	1000 V
Nazivni napon U0	600 V
Proizvođač-br. dijela	1133601/500

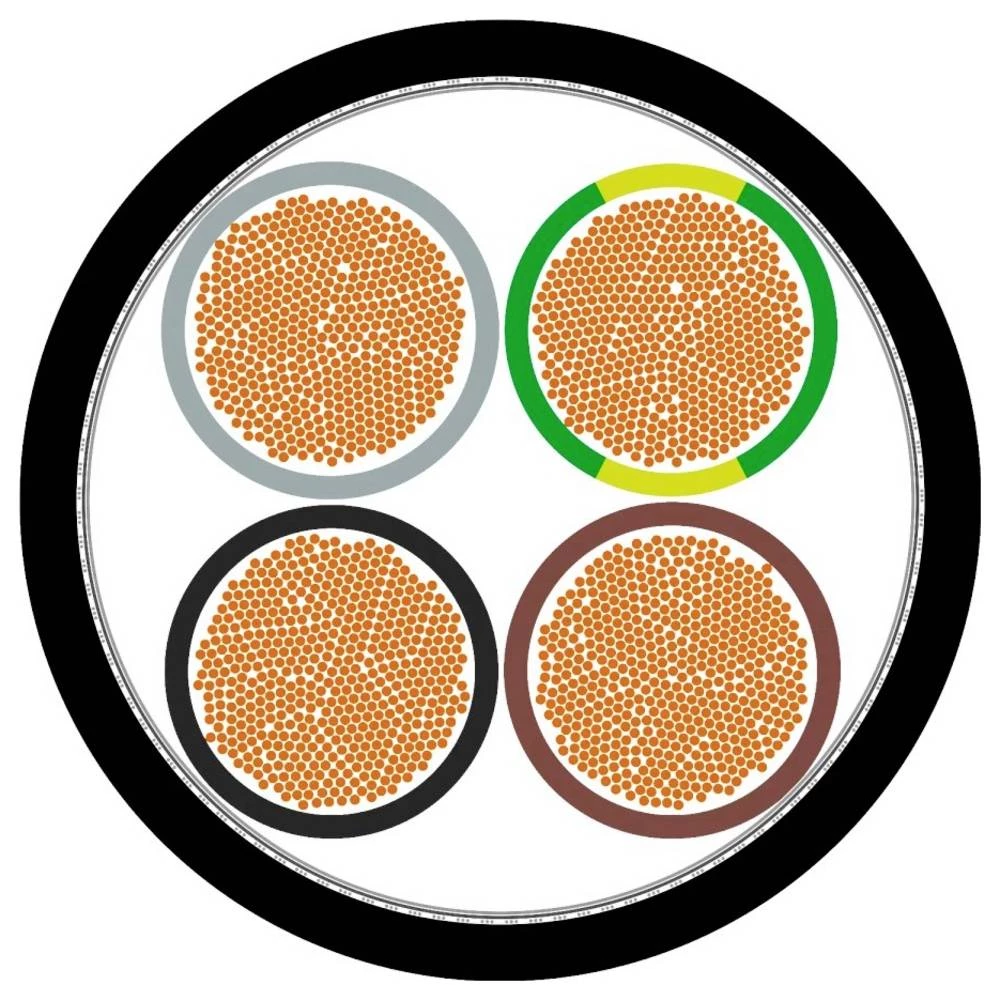

Tip	ÖLFLEX® SERVO 2XSLCY-JB 4G2,5
Material core insulation	Other
Nominal voltage U	1 kV
Colour outer sheath	Black
Material outer sheath	Polyvinyl chloride (PVC)
Permitted cable outer temperature after assembling without vibration	-40-90 °C
Number of main cores	4
Nominal cross section main conductors	2.5 mm²
Identification main cores	Colour
Nominal voltage U0	0.6 kV
Outer diameter approximate	12.1 mm
With protective conductor	TRUE
AWG size main conductors	14
Min. permitted bending radius, moving application/free movement	181.5 mm
Min. permitted bending radius, stationary application/permanent installation	48.4 mm
Specification material outer sheath	Other
Cable geometry	Round
Vrsta proizvoda	priključni vod
