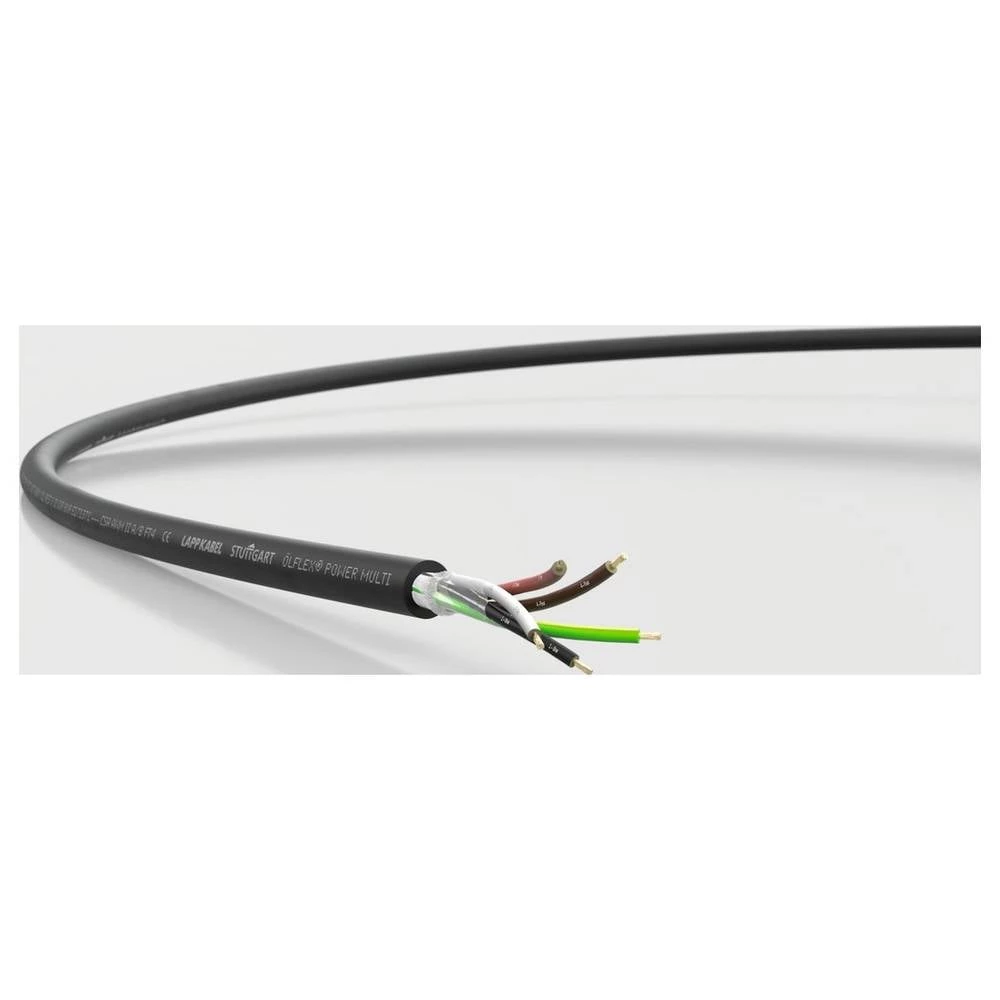

LAPP 611803/600 priključni vod 3 x 1 mm² 600 m

(0)

Dostupno online (Skladište: Njemačka)

Dostava: 19.06.2025 do 21.06.2025

Prodaja i slanje od: Architektengruppe S71 d.o.o.

6,360.00 KM

Komada

(0)

Prikaži recenzije

Tehničke specifikacije

Broj žica	3 x
Poprečni presjek (po žili)	1 mm²
Presjek	3 x 1 mm²
Vanjski Ø	9.4 mm
Sadržaj	600 m
Nazivni napon	500 V
Nazivni napon U0	300 V
Proizvođač-br. dijela	611803/600
Tip	ÖLFLEX® POWER MULTI 3G18AWG
Nominal cross section conductor	1 mm²
Material core insulation	Polyvinyl chloride (PVC)
Core identification	Colours and numbers
Nominal voltage U	500 V
Colour outer sheath	Black
Conductor material	Copper
Material outer sheath	Other
Conductor category	Class 5 = flexible
Permitted cable outer temperature after assembling without vibration	-40-105 °C
Nominal voltage U0	300 V
Number of cores	3
Outer diameter approximate	9.4 mm
With protective conductor	TRUE
Low smoke (according to EN 61034-2)	FALSE
Conductor surface	Bare
AWG size	Other
Min. permitted bending radius, moving application/free movement	39.2 mm
Min. permitted bending radius, stationary application/permanent installation	39.2 mm
Specification core insulation	Other
Specification material outer sheath	Other
Cable geometry	Round
Core identification according to HD 308 S2	FALSE
Vrsta proizvoda	priključni vod
