LAPP kontrolni vod 4 x 35 mm² 1119644/1000 1000 m

(0)

Dostupno online (Skladište: Njemačka)

Dostava: 24.03.2026 do 30.03.2026

Prodaja i slanje od: Architektengruppe S71 d.o.o.

122,395.00 KM

Komada

(0)

Prikaži recenzije

Tehničke specifikacije

Sadržaj	1000 m

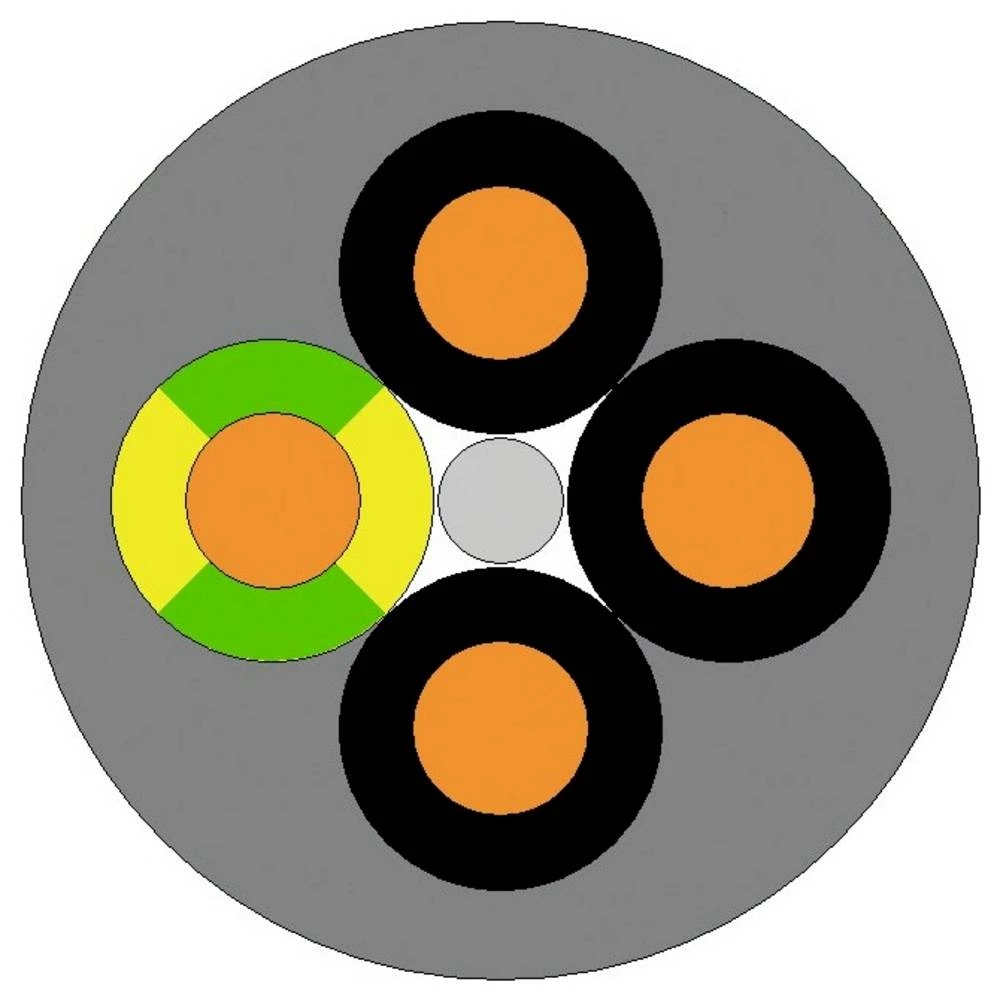

Presjek	4 x 35 mm²
Poprečni presjek (po žili)	35 mm²
Proizvođač-br. dijela	1119644/1000
Tip	ÖLFLEX® CLASSIC 110 4G35
Nazivni napon	500 V
Vanjski Ø	26.4 mm
Nazivni napon U0	300 V
Broj žica	4 x
Nominal cross section conductor	35 mm²
Material core insulation	Polyvinyl chloride (PVC)
Core identification	Numbers
Flame retardant	According to IEC/EN 60332-1-2
Nominal voltage U	500 V
Colour outer sheath	Grey
Conductor material	Copper
Material outer sheath	Polyvinyl chloride (PVC)
Conductor category	Class 5 = flexible
Permitted cable outer temperature after assembling without vibration	-40-80 °C
Nominal voltage U0	300 V
Number of cores	4
Outer diameter approximate	26.4 mm
With protective conductor	TRUE
Low smoke (according to EN 61034-2)	FALSE
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Min. permitted bending radius, moving application/free movement	264.0 mm
Min. permitted bending radius, stationary application/permanent installation	105.6 mm
Specification core insulation	Other
Specification material outer sheath	Other
Cable geometry	Round
Core identification according to HD 308 S2	FALSE
Vrsta proizvoda	kontrolni vod
