LAPP vod za servo 4 x 2.5 mm² 0027960/1000 1000 m

(0)

Dostupno online (Skladište: Njemačka)

Dostava: 24.03.2026 do 30.03.2026

Prodaja i slanje od: Architektengruppe S71 d.o.o.

47,615.00 KM

Komada

(0)

Prikaži recenzije

Tehničke specifikacije

Sadržaj	1000 m
Presjek	4 x 2.5 mm²
Poprečni presjek (po žili)	2.5 mm²
Proizvođač-br. dijela	0027960/1000

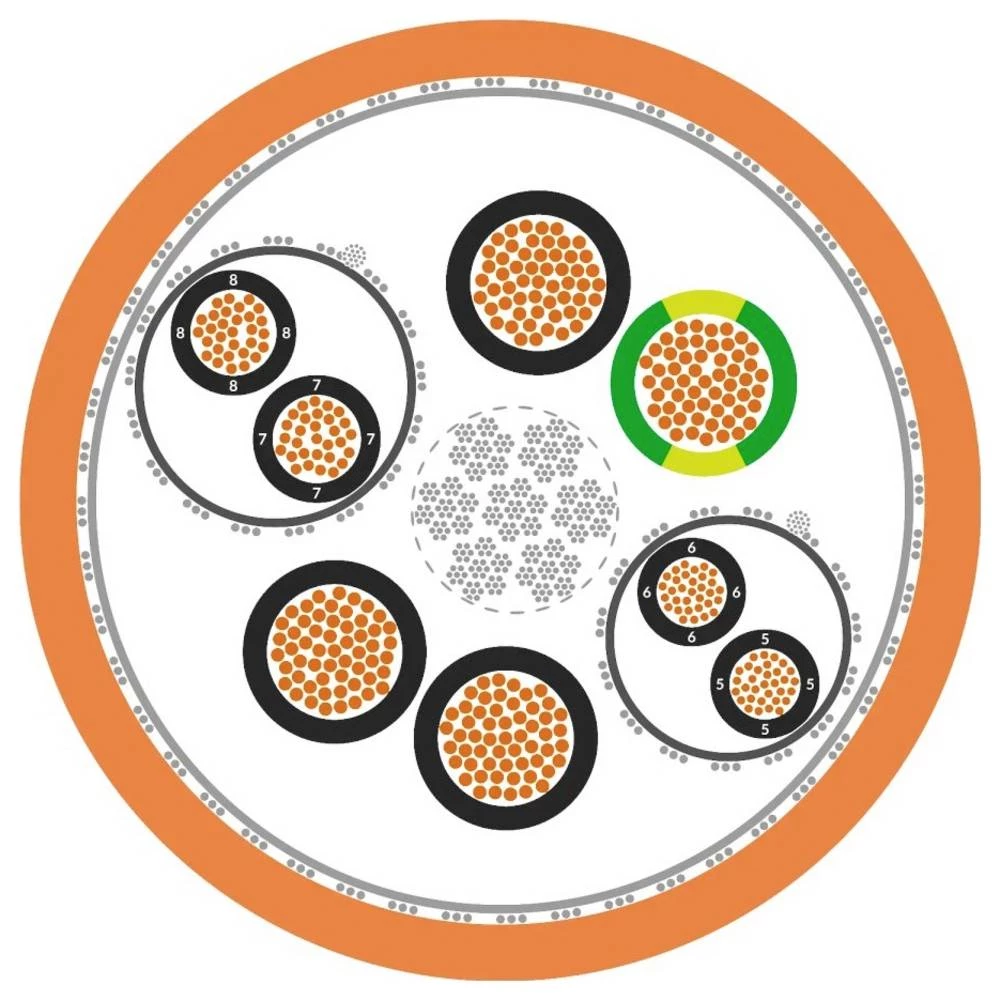

Tip	ÖLFLEX® SERVO FD 796 CP 4G2,5+(2x1,5)
Nazivni napon	1000 V
Vanjski Ø	13.4 mm
Nazivni napon U0	600 V
Broj žica	4 x
Nominal cross section conductor	2.5 mm²
Material core insulation	Other
Nominal voltage U	1 kV
Colour outer sheath	Orange
Conductor material	Copper
Material outer sheath	Polyurethane (PUR)
Conductor category	Class 6 = very flexible
Permitted cable outer temperature after assembling without vibration	-50-90 °C
Nominal voltage U0	0.6 kV
Number of cores	4
Outer diameter approximate	13.4 mm
With protective conductor	TRUE
Low smoke (according to EN 61034-2)	FALSE
Halogen free according to EN 60754-1/2	FALSE
Oil resistant according to EN IEC 60811-404	FALSE
Conductor surface	Bare
AWG size	14
Min. permitted bending radius, moving application with forced guidance	100.5 mm
Min. permitted bending radius, moving application/free movement	100.5 mm
Min. permitted bending radius, stationary application/permanent installation	53.6 mm
Specification core insulation	Polypropylene (PP)
Specification material outer sheath	Other
Cable geometry	Round
Core identification according to HD 308 S2	FALSE
Vrsta proizvoda	vod za servo
