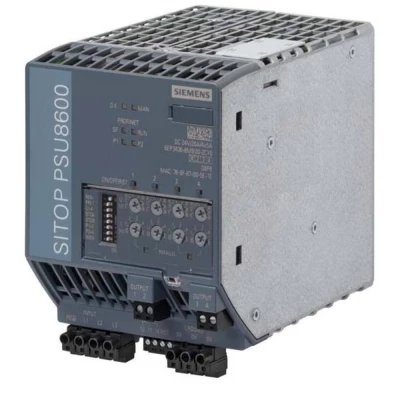

Siemens 6EP3436-8MB00-2CY0 DIN-napajanje (DIN-letva)

Sadržaj	1
Proizvođač-br. dijela	6EP34368MB002CY0
Tip	6EP3436-8MB00-2CY0
Width	100
Height	125
Depth	150
Built-in height	225
Built-in width	100
Modular version	TRUE
Power output	480
Output voltage stabilized	TRUE
Type of electric connection	Screw connection
Rail mounting possible	TRUE
Wall mounting possible	FALSE
Stabilized	TRUE
Degree of protection (IP)	IP20
Direct mounting possible	FALSE
Secondary voltage adjustable	TRUE
Short-circuit-proof	TRUE
Max. output current 1	20
Max. output current 2	5
Max. output current 3	5
Nominal value output voltage 1	24
Nominal value output voltage 2	24
Nominal value output voltage 3	24
Nominal value output current 1	20
Nominal value output current 2	5
Nominal value output current 3	5
Vrsta proizvoda	DIN-napajanje (DIN-letva)
